Focus Cobra-691S DTP Printer + Feed Machine
$39,995CAD
Shown in your selected currency. Shipping, installation and taxes quoted separately.
SKU Cobra-691S
Features

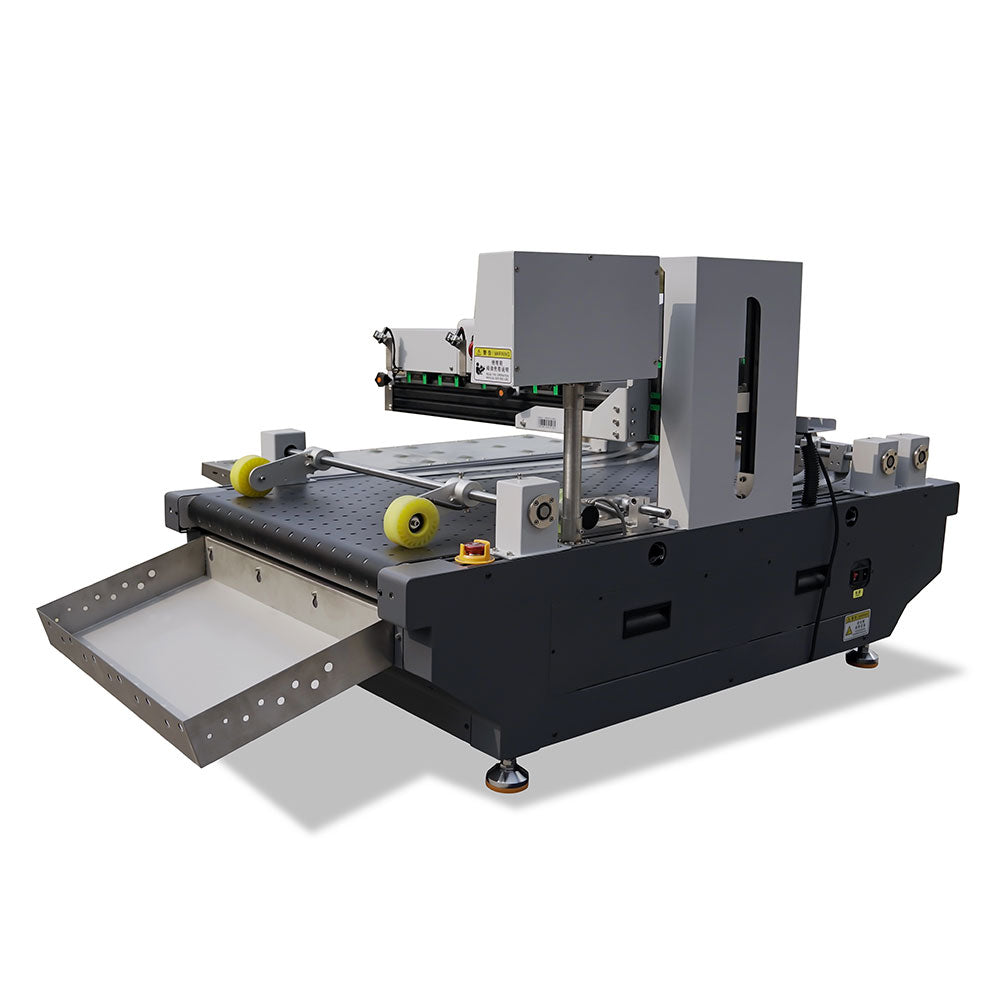

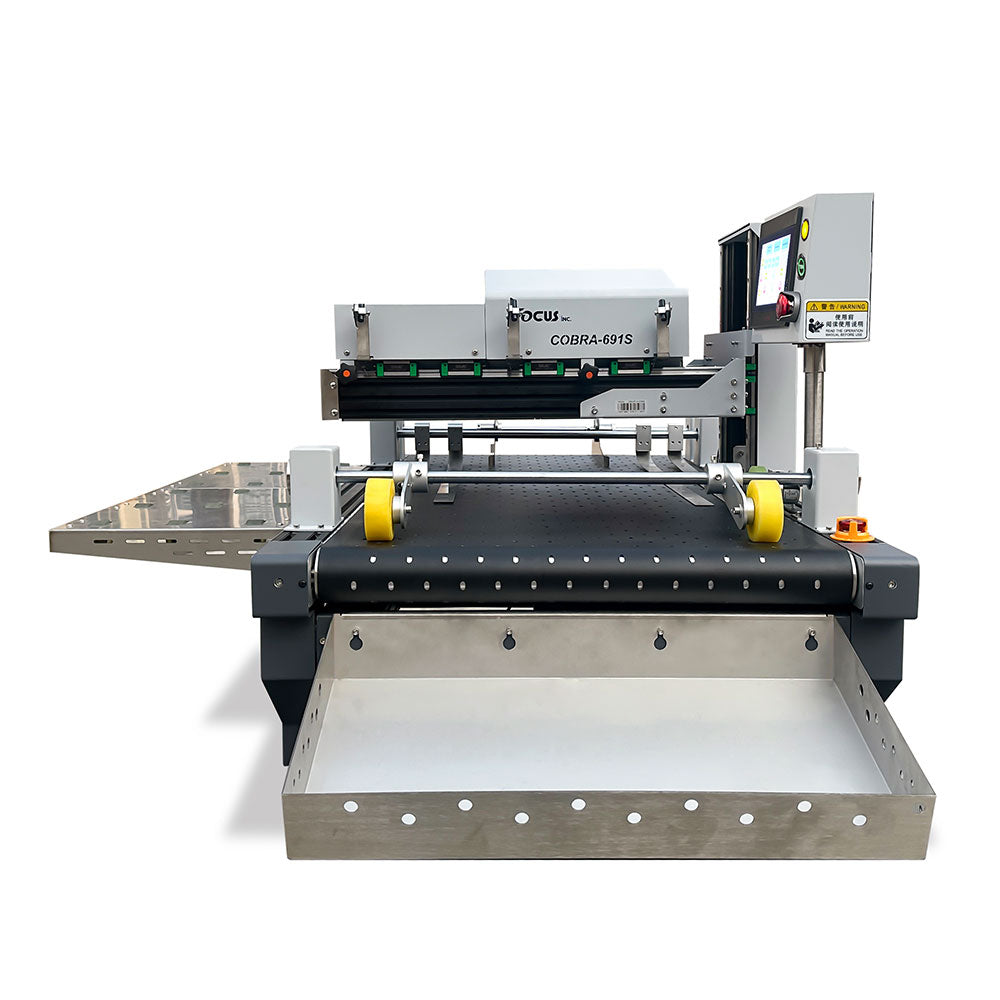

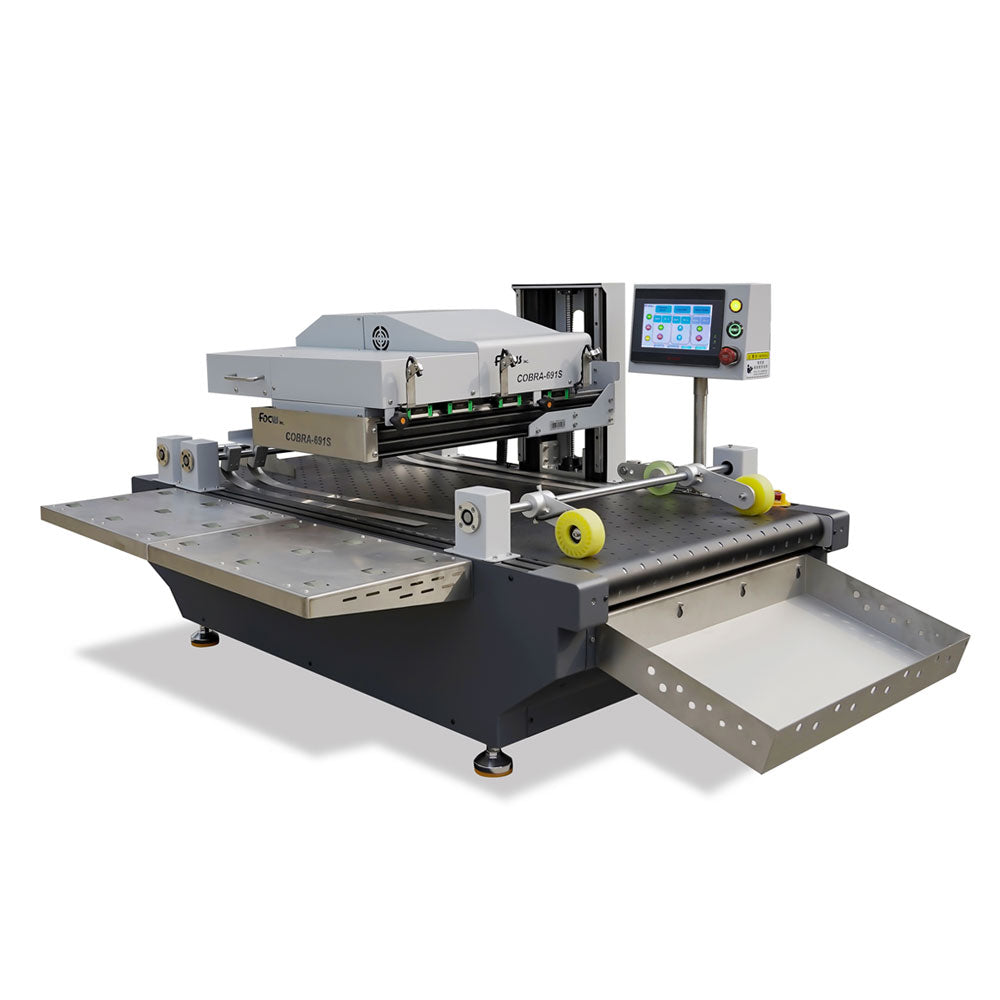

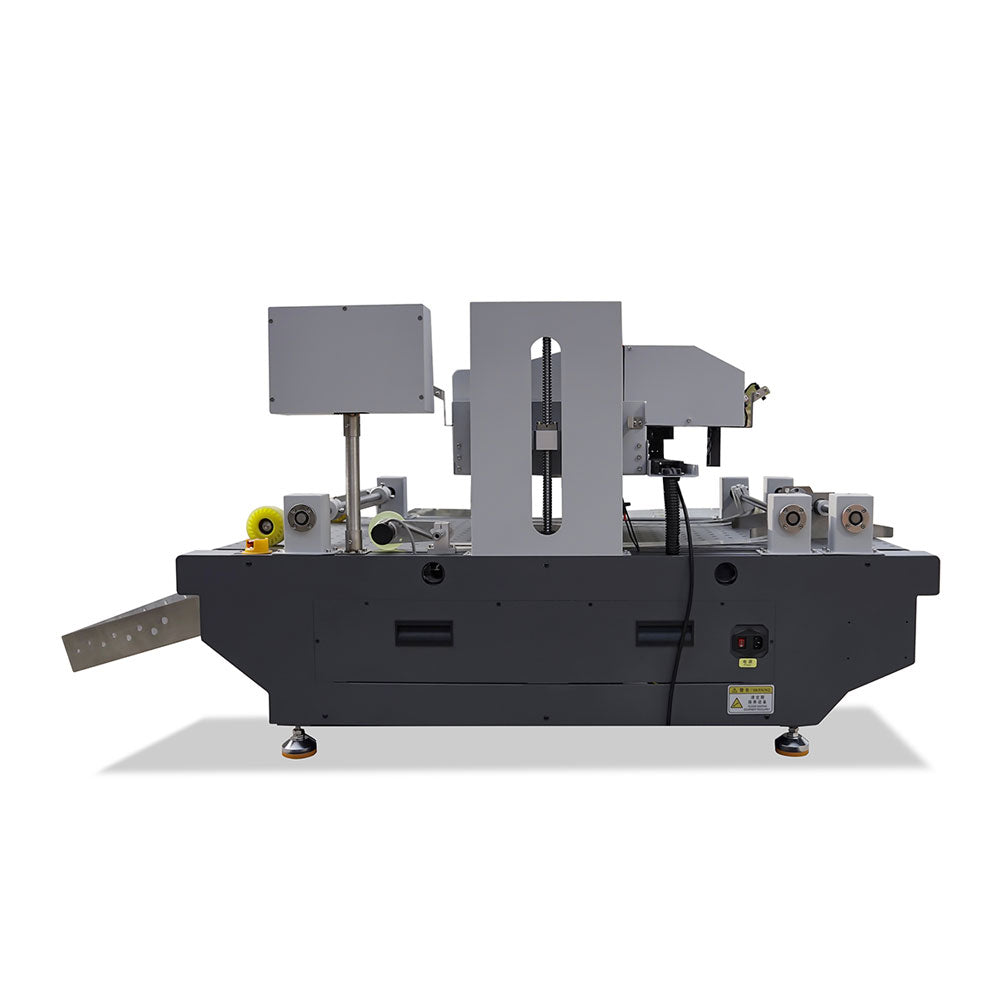

Focus Inc. Cobra-691S: Your All-in-One Printing Solution + 60 cm Feed Machine
The Focus Cobra-691S DTP Printer combines cutting-edge HP PageWide printing technology with a versatile, all-purpose design. This powerful printer is equipped with an integrated friction feeder, adjustable receiving tray, and vacuum conveyor, making it the ultimate solution for a wide range of printing needs.
Key Features
- Cantilevered design: print on larger media by removing the side flanks (no tools required). Perfect for oversized materials like boxes when the standard 600 mm feed width isn’t enough.
- Bubble-jet printing technology: high-quality prints on corrugated boxes and cardboard, pizza boxes, envelopes, shopping bags and more.
Why Choose the Cobra-691S?
- All-purpose functionality: designed to handle diverse printing tasks with ease.
- Ease of use: simple adjustments and tool-free modifications.
- Reliable performance: built to deliver consistent, high-quality results every time.
Specifications
| DURABLE AND RELIABLE | HIGH CAPACITY | HIGH-RESOLUTION |
| Adjustable pressure plates protect the printhead and improve quality | 500 ml refillable tanks with ink shortage alarms for uninterrupted printing | Single-head (210 mm) or dual-head (420 mm) configurations, up to 40 m per minute, 1200 dpi real-time encoder, independent height adjustment for materials up to 250 mm thick. |
Additional Features
| Focus Inc. Cobra 691-S Direct to Packaging | ||
| Printing Method | HP PageWide Bubble-Jet Print Technology | |
| Print Head | 1 or 2 HP PageWide print heads | |
| Print Nozzle Amount | 42,240 nozzles per head (4,224 per row, 10 rows per head) | |
| Print Resolution | 1200 x 300 / 1200 x 400 / 1200 x 600 / 1200 x 1200 dpi | |
| Print Head Protection | Carriage anti-scratch kit | |
| Print Speed | 10–40 m/min | |
| RIP Software | Control & RIP all in one | |
| Control Interface | Touch screen with PLC | |
| Media Type | Corrugated paper, pizza boxes, shopping bags, coffee bags, paper cups, envelopes, cards, napkins, tissue | |
| Media Margin Alignment | Laser alignment | 4–6 automatic laser guideline margins |
| Media Height Control | Electronic | Touch-screen electronic up/down motion |
| Media | Maximum Printing Area | 1 head: 8.26" (210 mm) wide, unlimited length |
| 2 heads: 16.53" (420 mm) wide, unlimited length | ||
| Maximum Load Size | Without side fender: 23.6" (600 mm) wide, unlimited length | |
| With side fender: 47.2" (1200 mm) wide, unlimited length | ||
| Maximum Thickness | 9.84" (250 mm) | |
| Auto Media Sender | Electronic automatic media sender | Automatic card and paper release sender, optional purchase |
| Ink | Type | Aqueous, dye, pigment |
| Colour | Black, cyan, magenta, yellow | |
| Ink Tank Capacity | 500 ml per colour | |
| Included Items | Print cable, cleaning kit, USB flash drive with manuals and installation videos | |
| Connectivity | Ethernet | |
| Power Requirements | 20A single-phase 220V, 50 Hz | |
| Acoustic Noise Level | 75 dB(A) or less | |
Specifications
| Media Vacuum System | Vacuum Power | 420W, optional purchase |
| Vacuum Control | Touch screen control | |
| Dimensions | Machine Size (L x W x H) | 51.7 x 31 x 30.6 in. (main printer) |
| Packing Size | 63.8 x 35 x 39 in. (main printer) | |
| Weight | Net Weight | 429 lb / 195 kg (main printer) |
| Gross Weight | 605 lb / 275 kg (main printer) | |
| Environment | Temperature | 59–86 °F / 15–30 °C |
| Humidity | 40–80% |
Whether you’re printing on standard or oversized media, the Cobra-691S is the perfect solution for your packaging and printing needs.
