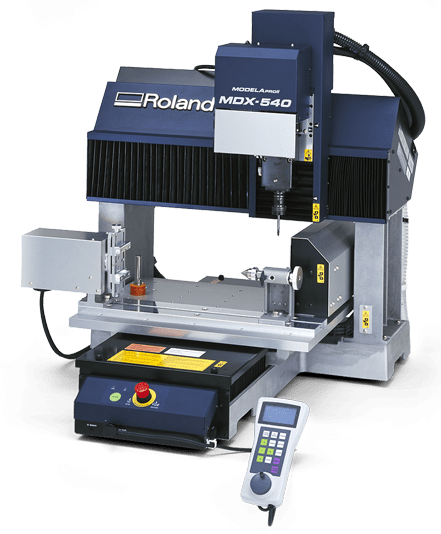

MDX-540, MDX-540A, MDX-540S, MDX-540SA Benchtop Milling Machines
Price on request
Features
MDX-540 3D milling machines are some of the fastest, most accurate and accessible devices on the market, ideal for producing everything from functional and snap-fit parts and prototypes to light metal molds and custom jewelry. Available in standard and enhanced models, MDX-540 benchtop milling machines offer advanced CNC milling at an affordable price.
Choose the MDX-540 Model That's Right For You
MDX-540S
Produce even smoother curves and finer details with the addition of higher accuracy ballscrews for enhanced precision and repeatable production capabilities.
MDX-540A
Includes an Automatic Tool Changer for uninterrupted milling.
MDX-540SA
Produce smoother curves and finer details with the addition of higher accuracy ballscrews for enhanced precision and repeatable production capabilities, plus an Automatic Tool Changer for non-stop production.
Specification
Specifications
| MODEL | MDX-540 | MDX-540S |
|---|---|---|
| Usable Materials | Plastic, resin, wood and non-ferrous metals | |
| XYZ-Axis Travel | 19.6(X) x 15.7(Y) x 6.1"(Z)[500 (X) x 400 (Y) x 155 mm (Z)] | |
| Loadable workpiece size with optional rotary axis (ZCL-540) * | 7.0” Diameter x 14.6” Length [177.8mm Diameter x 370.8mm Length] Actual milling area is smaller |
|
| Distance From Spindle Nose to Table | Maximum 10" (254mm) | |
| Table Size | 21.7(W) x 16.5"(D) [550(W) x 420mm (D)] | |
| Loadable workpiece weight | At acceleration of 0.2G: maximum 26lb (12kg), 0.1G: 44lb (20kg), 0.05G: 44lb (20kg) | |
| XYZ-axis drive system | AC servo motor, 60W | AC servo motor, 80W |
| Operating speed | Maximum 295ipm (7.5m/min) | |
| Acceleration | 0.2G, 0.1G, 0.05G | |
| Software resolution | RML-1 mode: 0.0004"(0.01mm ), NC-code mode: 0.00004" (0.001mm) | |
| Mechanical resolution | 0.00004” (0.001mm) | |
| Positioning accuracy | +/-0.004"/12"(+/-0.1mm/300mm), under no-load conditions | |
| Repeat accuracy | +/-0.0019"(+/-0.05mm), under no-load conditions | +/-0.0008"(+/-0.02mm), under no-load conditions |
| Origin reproducibility (when the power is switched on/off) | +/-0.0019" (+/-0.05mm) | +/-0.0008" (+/-0.02m) |
| Spindle motor | DC brushless motor, maximum 400W | |
| Spindle speed | 400 to 12,000 rpm; 400 to 3,000 rpm for positioning and centering | |
| Tool chuck | Collet method, maximum tool diameter: 0.4" (10mm) | |
| Control command sets | RML-1 and NC codes | |
| Interface | USB (compliant with Universal Serial Bus Specification Revision 1.1) | |
| Power supply | Voltage and frequency: AC 100 to 120 V/220 to 240 V +/-10%, 50/60 Hz Required power capacity: 7A (100 to 120V)/4A (220 to 240V) |
|
| Power consumption | Approx. 700W | |
| Acoustic noise level | During operation (no cutting): 65dB (A) or less, during standby: 40dB (A) or less (according to ISO 7779) | |
| Dimensions | Width x depth x height: 29.3 x 37.6 x 33.8Z" (745 x 955 x 858mm) | Width x depth x height: 30.1 x 37.6 x 33.8Z" (765 x 955 x 858mm) |
| Weight | 225lb (102kg) | |
| Operating temperature | 41 to 104F (5 to 40C) | |
| Operating humidity | 35 to 80% (no condensation) | |
| Included items | Handy panel, power cord, tool sensor, sensor cable, nut, nut wrench, wrench, hexagonal wrenches, Roland Software CD-ROM, SRP Player CD-ROM, User's Manual, Roland Software Guide, SRP Player Installation and Setup Guide, and NC Code Reference Manual | |
| MODEL | MDX-540A | MDX-540SA |
|---|---|---|
| Usable Materials | Plastic, resin, wood and non-ferrous metals | |
| XYZ-Axis Travel | 15.7(X) x 15.7(Y) x 6.1"(Z)[400 (X) x 400 (Y) x 155 mm (Z)] | |
| Loadable workpiece size with optional rotary axis (ZCL-540) * | 7.0” Diameter x 14.6” Length [177.8mm Diameter x 370.8mm Length] Actual milling area is smaller |
|
| Distance From Spindle Nose to Table | Maximum 10" (254mm) | |
| Table Size | 21.7(W) x 16.5"(D) [550(W) x 420mm (D)] | |
| Loadable workpiece weight | At acceleration of 0.2G: maximum 26lb (12kg), 0.1G: 44lb (20kg), 0.05G: 44lb (20kg) | |
| XYZ-axis drive system | AC servo motor, 60W | AC servo motor, 80W |
| Operating speed | Maximum 295ipm (7.5m/min) | |
| Acceleration | 0.2G, 0.1G, 0.05G | |
| Software resolution | RML-1 mode: 0.0004"(0.01mm ), NC-code mode: 0.00004" (0.001mm) | |
| Mechanical resolution | 0.00004” (0.001mm) | |
| Positioning accuracy | +/-0.004"/12"(+/-0.1mm/300mm), under no-load conditions | |
| Repeat accuracy | +/-0.0019"(+/-0.05mm), under no-load conditions | +/-0.0008"(+/-0.02mm), under no-load conditions |
| Origin reproducibility (when the power is switched on/off) | +/-0.0019" (+/-0.05mm) | +/-0.0008" (+/-0.02m) |
| Spindle motor | DC brushless motor, maximum 400W | |
| Spindle speed | 400 to 12,000 rpm; 400 to 3,000 rpm for positioning and centering | |
| Tool chuck | Tool holder format, Taper shank: JBS4002 15T | |
| Control command sets | RML-1 and NC codes | |
| Interface | USB (compliant with Universal Serial Bus Specification Revision 1.1) | |
| Power supply | Voltage and frequency: AC 100 to 120 V/220 to 240 V +/-10%, 50/60 Hz Required power capacity: 7A (100 to 120V)/4A (220 to 240V) |
|
| Power consumption | Approx. 700W | |
| Acoustic noise level | During operation (no cutting): 65dB (A) or less, during standby: 40dB (A) or less (according to ISO 7779) | |
| Dimensions | Width x depth x height: 29.3 x 37.6 x 33.8" (745 x 955 x 858mm) | Width x depth x height: 30.1 x 37.6 x 33.8" (765 x 955 x 858mm) |
| Weight | 249lb (109kg) | |
| Operating temperature | 41 to 104F (5 to 40C) | |
| Operating humidity | 35 to 80% (no condensation) | |
| Included items | Handy panel, power cord, tool sensor, sensor cable, nut, nut wrench, wrench, hexagonal wrenches, Roland Software CD-ROM, SRP Player CD-ROM, User's Manual, Roland Software Guide, SRP Player Installation and Setup Guide, NC Code Reference Manual, and Automatic Tool Changer (Refer to the ZAT-540 specs below.) | |
| Automatic Tool Changer (ZAT-540) | ||
|---|---|---|
| Number of tools housed | 4 | |
| Maximum tool length | 4.3” (110mm) | |
| Maximum tool diameter | 0.4” (10mm) | |
| Maximum tool weight | 0.77lb (350g) | |
| Tool-holder format | Taper shank: JBS4002 15T | |
| Tool-selection method | Direct-changing type, fixed-address specification | |
| Compatible compressed air | 102 to 145 psi, 1.8CFM (0.7 to 1.0 MPa, 50 L/min or higher) | |
| Spindle speed | 400 to 12,000 rpm; 400 to 3,000 rpm for positioning and centering | |
| Weight | 15lb (6.8kg) (total weight including spindle, magazine, control box, etc.) | |
| Included items | Control box, magazine unit, ATC spindle, air cylinder, base plate, Z-origin sensor, spacer, cap screws, hexagonal wrenches, retaining bands, cable retainers, and user's manual | |
