Roland DG · VersaObject
IO-300

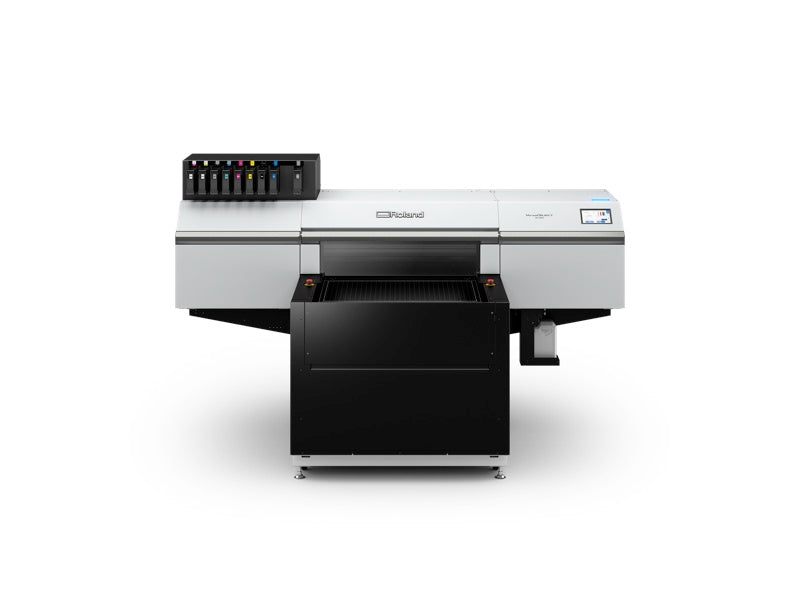

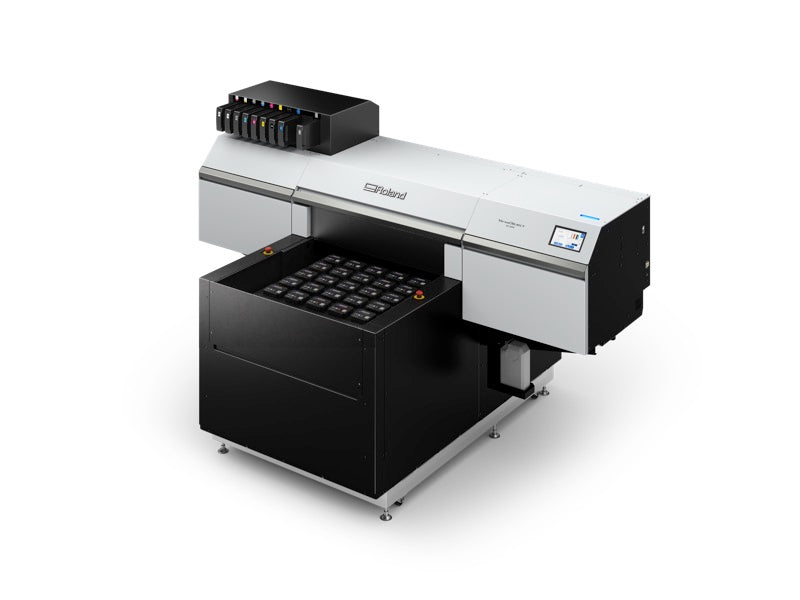

B2 (20" × 30") Industrial UV Flatbed Printer
Primer → CMYK in a single pass
— plus excellent ink adhesion on low surface energy materials and GREENGUARD Gold certified EUV-H ink.
A purpose-built industrial flatbed for repeatable printing on products, parts, components, and rigid substrates — automation ready with SC4 commands and password-protected service mode to prevent accidental changes.
Includes a one-year warranty. Call 800-268-6577 or email sales@printfinish.com.
Staggered Printheads
Single-pass primer and color
Four GEN 6 industrial printheads in a dual staggered array print primer → CMYK in one pass, with higher firing frequency, smaller droplets, and unidirectional printing for print accuracy.
Production Ready
Precise, repeatable movement

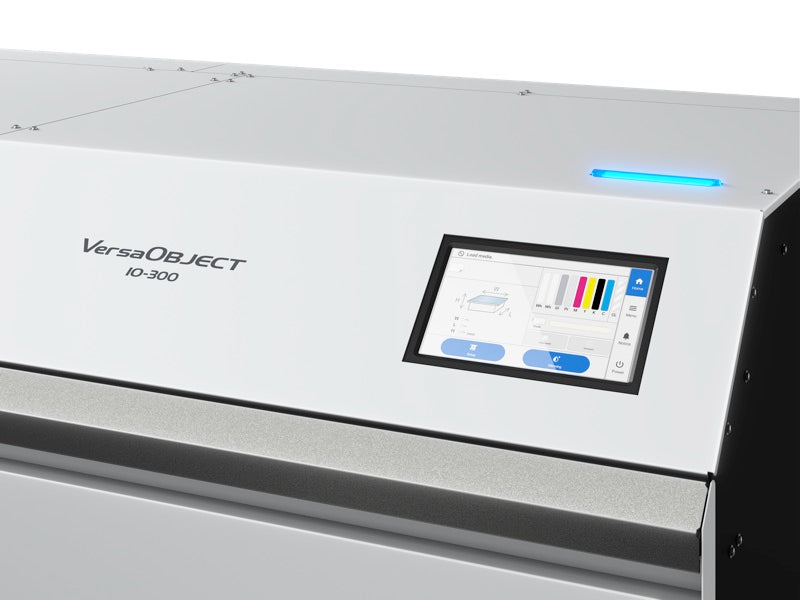

A high-rigidity chassis with ball screw mechanism, full-surface vacuum table, solenoid media alignment pins, and a 7-inch touch panel with status light keep repeat jobs consistent and easy to monitor.
Safe & Low Maintenance
Built-in protection and upkeep
Two emergency stop buttons, adjustable table clearance with contact sensing, a cloth wiper that keeps printheads free of cured ink, and customizable automatic cleaning cycles.
Built for products, parts, and rigid substrates
Up to 30 × 20 in. of print area, 8 in. of media thickness, and 44.1 lbs of media weight — held flat by a full-surface vacuum table.
Product Packaging
Wooden Nameplates

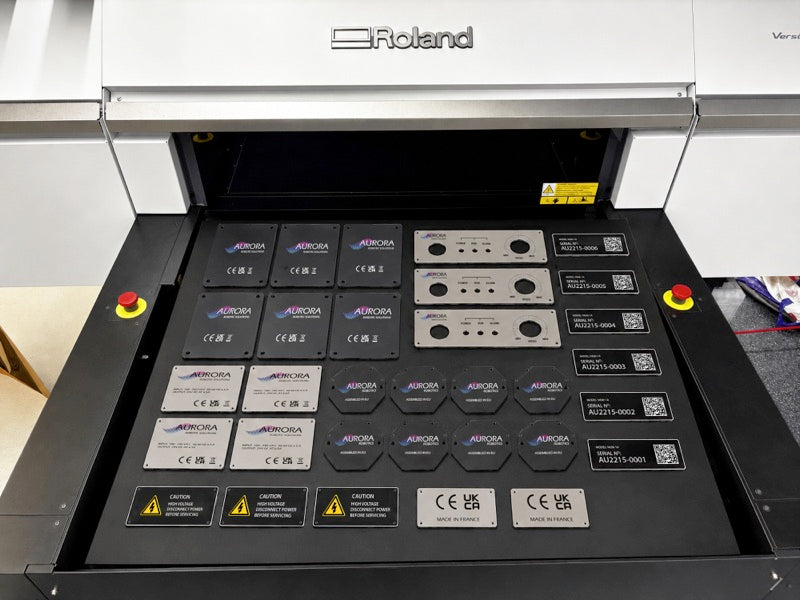

Metal Panels

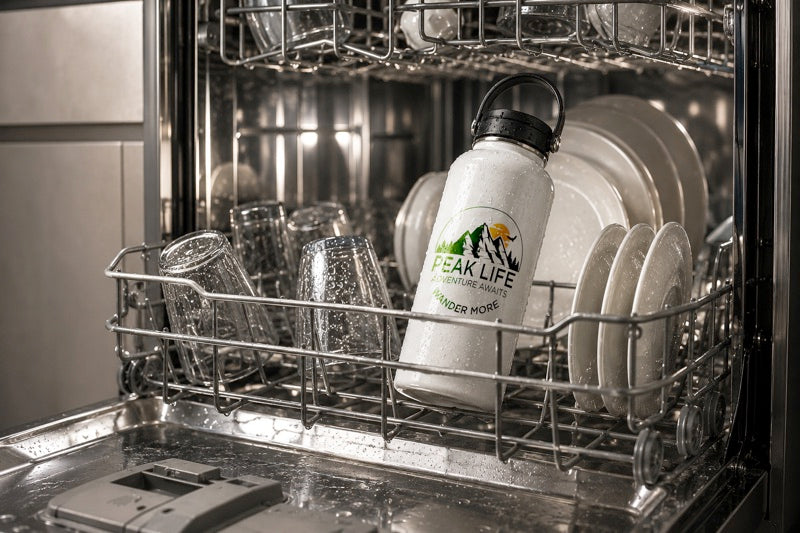

Dishwasher-Safe Drinkware

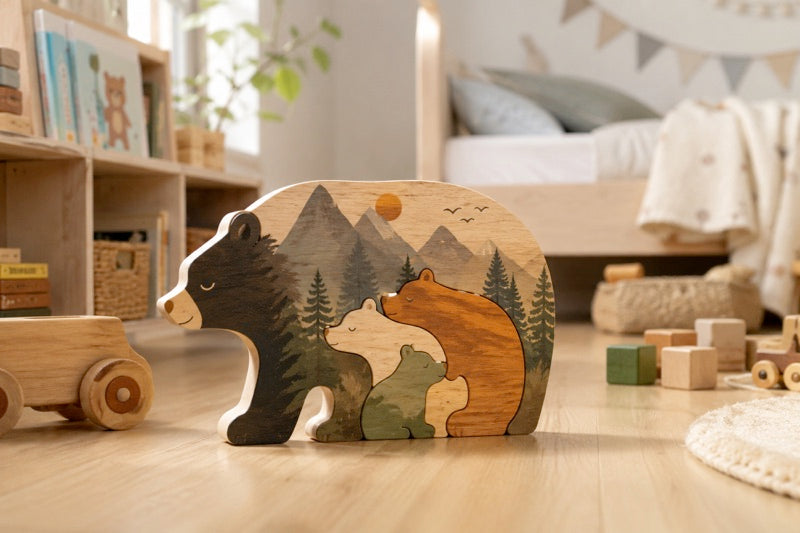

Wooden Toys & Decor

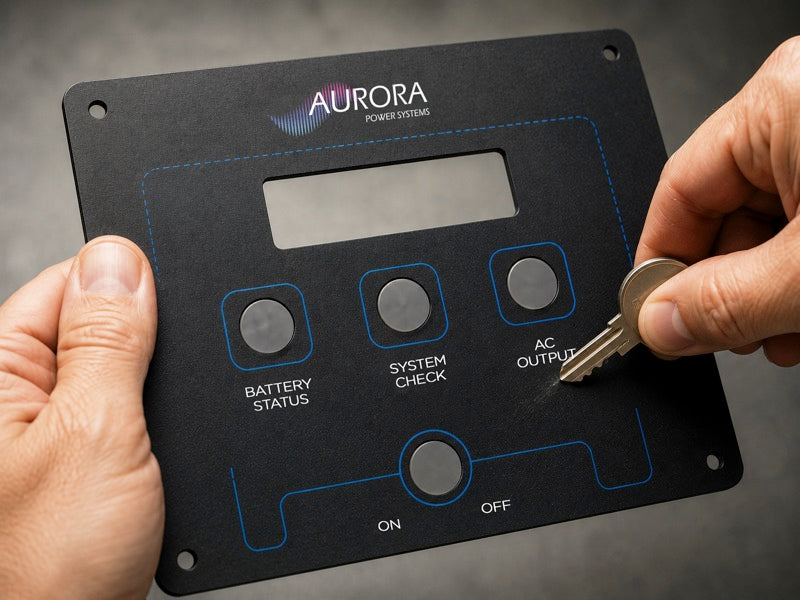

Durable Control Panels

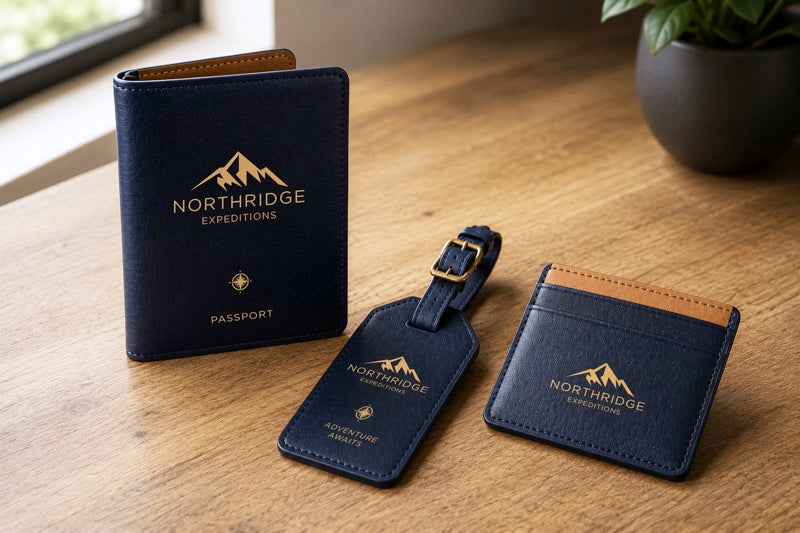

Leather Travel Goods

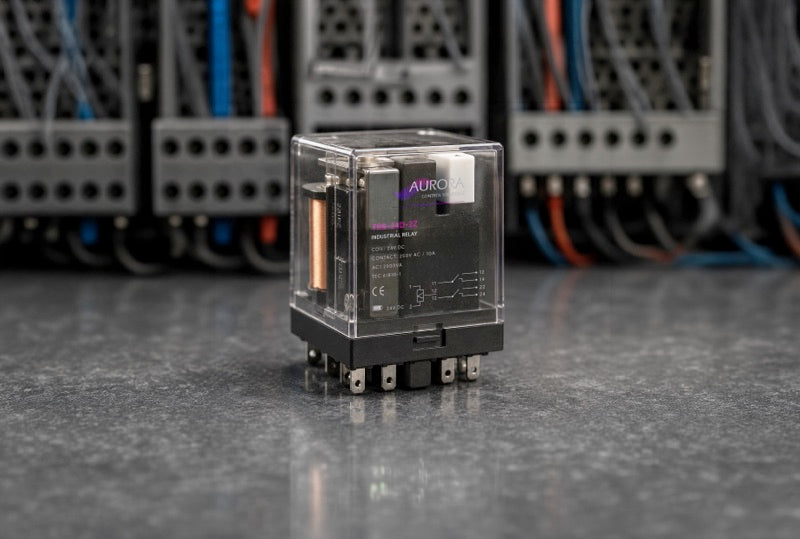

Electrical Components

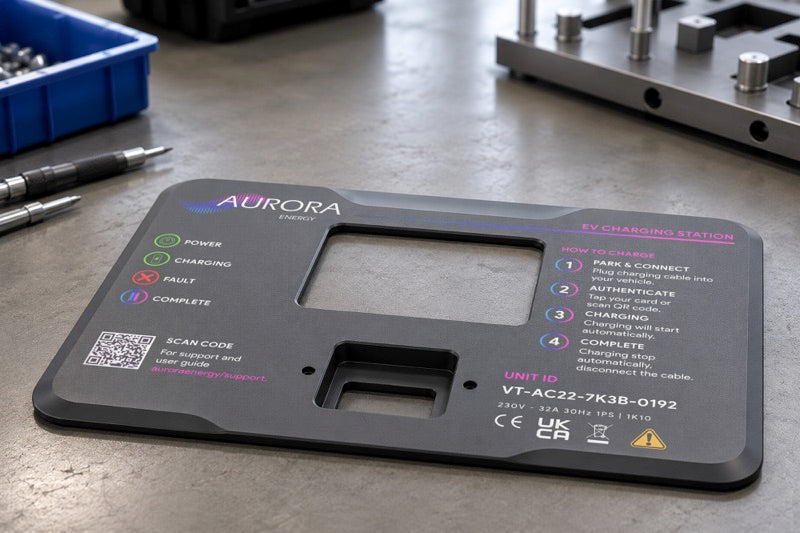

EV Charger Fascias

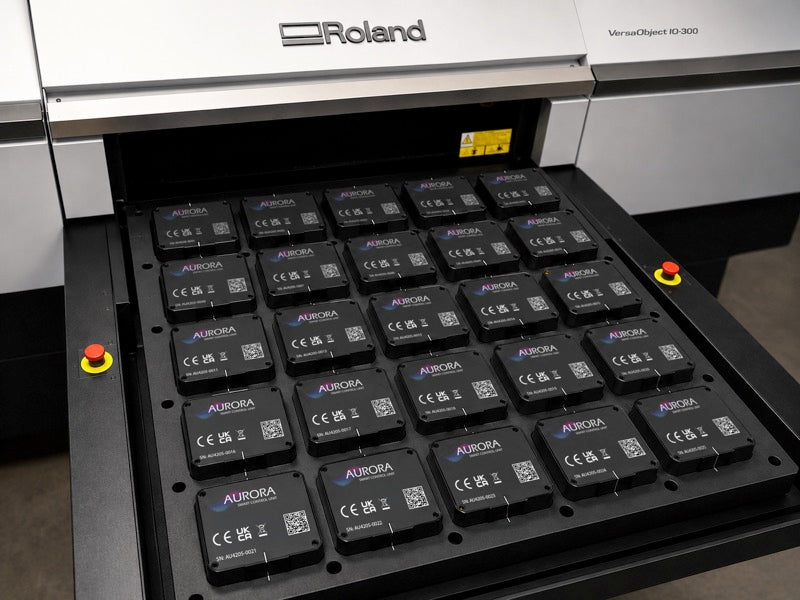

Keypads & Control Units
Spirits & Packaging

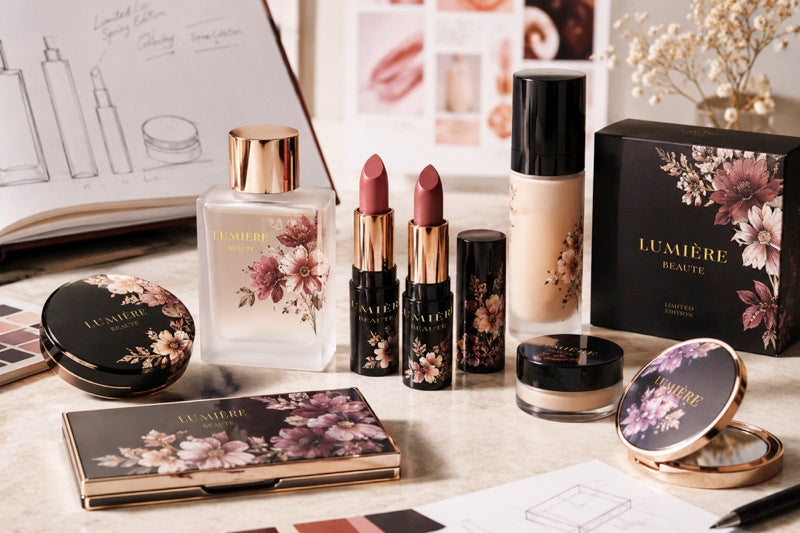

Cosmetics & Compacts

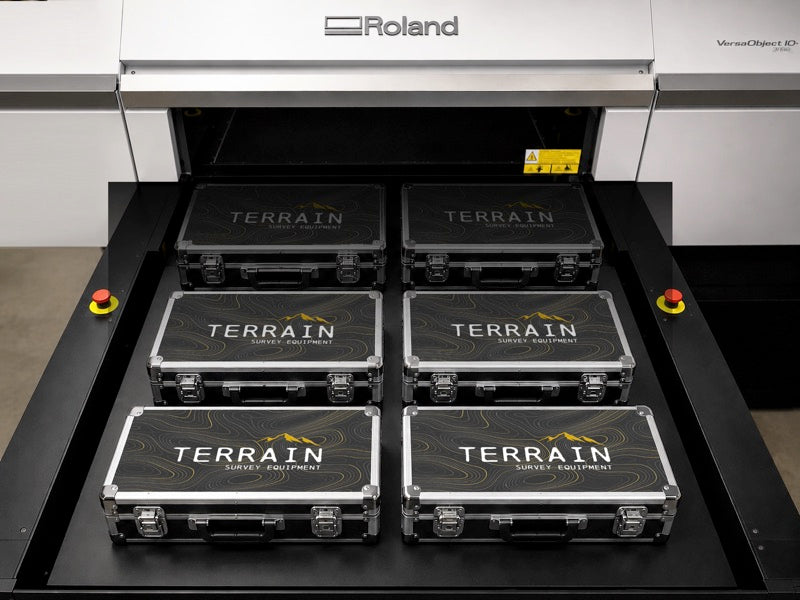

Equipment Cases

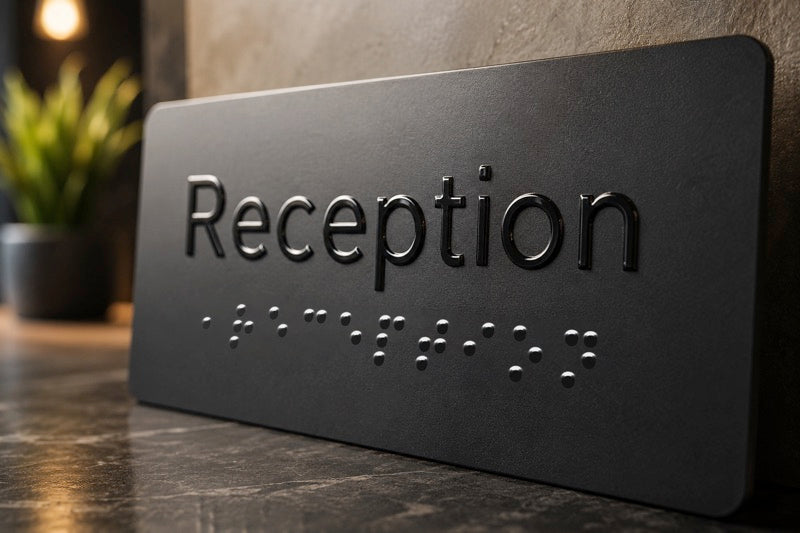

ADA & Braille Signage
A repeatable production workflow
From artwork to cured print, with checks built in at every stage.
Design
Prepare artwork in Roland DG Connect Designer and RIP it in VersaWorks 7, choosing the ink configuration and pass mode for the job.
Load & Align
Place the item on the vacuum table using the solenoid alignment pins, then measure height with the contact sensor — or the optional non-contact laser sensor.
Print primer → CMYK in a single unidirectional pass while the UV-LED lamp cures the ink as it goes.
Inspect & Repeat
Pause and use the View function to bring the table forward for a quality check, resume from the same position, then repeat the job — or drive it via SC4 automation commands.
Specifications
Key specs at a glance, with the full technical sheet below.
MSRP
$59,995
Printheads
4, staggered array (GEN 6)
Max print area
30 × 20 in. (770 × 515 mm)
Max media size
31.4 × 21.4 in.
Max media thickness
8 in. (204 mm)
Max media weight
44.1 lbs (20 kg)
Print speed (CMYK)
3.5 m²/h
Weight
1,047 lbs (475 kg)
Printer
Print head
New printheads (4) in staggered array
Max. printing area
30 × 20 in. (770 × 515 mm)
Max. media size
31.4 × 21.4 in. (800 × 545 mm)
Max. media thickness
8 in. (204 mm)
Max. media weight
44.1 lbs (20 kg)
UV-LED lamp
New UV-LED lamp (6 in.)
Height sensor
Contact sensor; non-contact laser sensor optional
Control panel
7" color liquid crystal panel
Speed
CMYK
3.5 m²/h (uni, 720 × 900, 12 pass)
White + CMYK
3.2 m²/h (uni, 720 × 900, 12 pass)
Ink
Type
EUV-H, GREENGUARD Gold certified

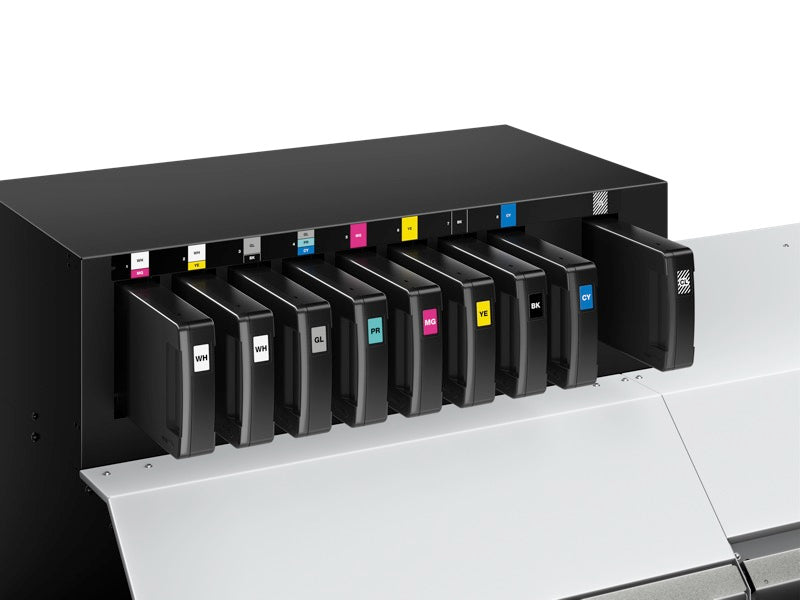

Slots / capacity
8 slots, 750 ml pouch
Configurations
CMYKPrGlWhWh (recommended), CMYKGlGlWhWh, CMYKCMYK
Ink pricing
EUV-H 750 ml, $209.99 ($0.28/ml); ESL5P-CL cleaning liquid 500 ml, $63.99
Software & Automation
RIP
VersaWorks 7
Cloud software
Roland DG Connect
External IO commands
SC4 commands
Options & Table
Vacuum table
Standard
Stand
Standard
Rotary axis
Option — max. diameter 4.5 in. (115 mm), cylindrical items only
Ionizer system
Option
Extraction system
Third-party solution
Physical & Install
Dimensions (W × D × H)
95.9 × 68.8 × 58.9 in. (2,437 × 1,747 × 1,495 mm)
Weight
1,047 lbs (475 kg)
Power
120 V, 60 Hz, NEMA 5-15 3-prong power cable
Operational space
Keep approx. 43 in. (1,100 mm) clear around the device
Environment
68–90 °F, 35–78% RH (no condensation), dust-free and climate controlled
Warranty
One-year limited warranty; onsite service via certified dealership or Roland Care Onsite Services
Request a Quote
Tell us about your application and we'll follow up with pricing, installation details, and lead time for the IO-300.
