Roland DG · TrueVIS Pro

XP-640

Eco-Solvent Roll-to-Roll Printer — 64 in.

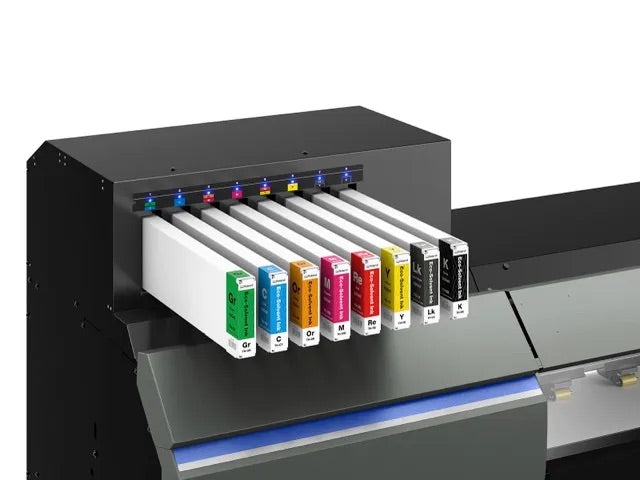

Eight ink slots

— run double CMYK for speed, or CMYK plus light black, orange, green and red for the widest colour gamut.

The XP-640 is a 64-inch eco-solvent roll-to-roll printer built for production sign and graphics work. Eight ink slots take either a double CMYK configuration for throughput or an eight-colour set that reaches oranges, greens and reds outside a standard CMYK gamut. Banner output runs to 76.1 m²/h, and a take-up unit is included as standard.

$17,995USD

Request a Quote

September 2026 promotional pricing. TH ink is GREENGUARD Gold certified. Optional DU3-64 dryer available. Call 800-268-6577 or email sales@printfinish.com.

Ink Configuration

Eight slots, two ways to run them

Load double CMYK when throughput matters, or CMYK with light black, orange, green and red when gamut does. The eight-colour set reaches saturated oranges, greens and reds that four-colour work cannot hit, which matters for brand-matched graphics.

Productivity

Up to 76.1 m²/h on banner

Double CMYK reaches 76.1 m²/h on banner at maximum speed and 22.5 m²/h on vinyl in standard mode. The eight-colour configuration runs 38.1 m²/h and 15.2 m²/h respectively — the trade you make for the wider gamut.

Media Handling

64-inch rolls up to 99 lbs

Media from 259 to 1,625 mm wide and up to 1 mm thick, on rolls to 45 kg (99 lbs). A take-up unit is included rather than optional, so unattended roll-to-roll production works out of the box.

Resolution

Up to 1,200 × 1,800 dpi

Fine text, small logos and gradients hold together at close viewing distance, so the same machine covers both long-range banner work and detail that will be read from a few feet away.

Certification

GREENGUARD Gold TH ink

TH ink carries UL GREENGUARD Gold certification for low VOC emissions into indoor air — the standard usually asked for on graphics installed in schools, healthcare and other occupied interiors.

Drying

Optional DU3-64 dryer

The DU3-64 dryer is available as an option where faster handling off the roll is needed, particularly on heavier ink loads and less absorbent media.

Production sign and graphics work

Wide-format output up to 64 inches, from long-run banner to detailed interior graphics.

Vehicle wrap printed on the Roland XP-640

Vehicle Graphics

Backlit sign printed on the Roland XP-640

Backlit Signage

Window and floor graphics printed on the Roland XP-640

Window & Floor Graphics

A production roll-to-roll workflow

Roland DG Connect Designer, VersaWorks 7, and the BY2-20 work together as one connected design-to-print workflow.

Choose the ink set

Double CMYK for throughput, or the eight-colour set when the job needs orange, green or red outside a CMYK gamut.

Load the roll

Media from 259 to 1,625 mm wide, up to 1 mm thick and 45 kg on the roll.

Print

Up to 1,200 × 1,800 dpi, at speeds from 15.2 to 76.1 m²/h depending on ink set and mode.

Take up and finish

The included take-up unit winds output for unattended runs; the optional DU3-64 dryer speeds handling on heavy ink loads.

Specifications

Key specs at a glance, with the full technical sheet below.

Product type

64 in. ECO-SOL roll-to-roll printer

Media width

259 to 1,625 mm (10.2 to 64 in.)

Media thickness

Max. 1 mm

Roll weight

Max. 45 kg (99 lbs)

Resolution

Max. 1,200 × 1,800 dpi

Ink configuration

8 ink slots — 2CMYK or CMYKLkOrGrRe

Dimensions

113.7 × 29.5 × 55.8 in.

Weight

417 lb. (189 kg)

Compatible inks

The XP-640 runs TrueVIS Pro TH ink in 500 ml pouches.

TrueVIS Pro (TH) InkTH-XX · 500 ml pouch

Frequently asked questions

Should I run double CMYK or the eight-colour set?

Double CMYK roughly doubles throughput — 76.1 m²/h against 38.1 m²/h on banner. The eight-colour set adds light black, orange, green and red for colours a CMYK gamut cannot reach. Choose by whether your work is volume-led or brand-colour-led.

Is a take-up unit included?

Yes, the take-up unit is standard rather than an option, so unattended roll-to-roll production is available without an additional purchase. The DU3-64 dryer is the option.

What media will it handle?

Rolls from 259 to 1,625 mm (10.2 to 64 in.) wide, up to 1 mm thick, weighing up to 45 kg (99 lbs).

Can I switch ink configurations later?

The ink switching system supports the CMYK configuration only. Plan the configuration at purchase and talk to us if you expect the mix of work to change.

What space does it need?

The machine measures 113.7 × 29.5 × 55.8 in. and weighs 417 lbs. Allow working clearance front and rear for roll loading and take-up.
