Roland CAMM-1 GR-Series Large Format Cutters 54" & 64"

Roland Large Format Printers

Roland CAMM-1 GR-Series Large Format Cutters 54" & 64"

Write a review

available: 10

Availability : 10 In Stock 10

Roland CAMM-1 GR-Series Large Format Cutters 3 Sizes to choose from: Roland CAMM-1 GR-640 (64") & GR-540 (54") Increased down force of 600gf to cut more materials like cardboard, corrugated e-flute, heat transfer material, diamond grade films, sandblast mask, vinyl films, high density reflective films and much more Fast cutting...

Effective Price : Regular price $0.00

Quantity

Roland Soljet Pro 4 XR-640 Eco-Solvent Printer/Cutter 64"

CAMM-1 GR2 series large format vinyl cutters

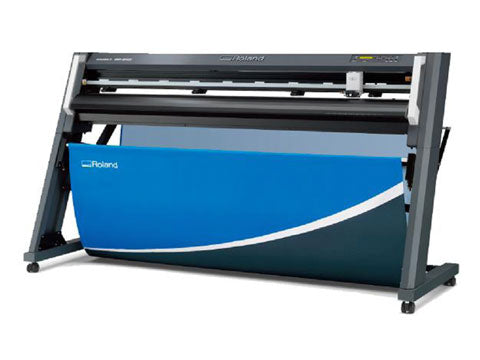

Roland CAMM-1 GR-Series Large Format Cutters

3 Sizes to choose from: Roland CAMM-1 GR-640 (64") & GR-540 (54")
Increased down force of 600gf to cut more materials like cardboard, corrugated e-flute, heat transfer material, diamond grade films, sandblast mask, vinyl films, high density reflective films and much more
Fast cutting at 58.5 in/s
Electronically adjustable pinch rollers with 10 pressure settings to firmly grip thin to thick materials
Overlap cutting (up to 10x) to cut accurately through thick materials
Storage trays, handles and basket levers with convenient media basket are included
Includes Roland CutStudio software and plugins for Adobe Illustrator and Corel Draw
3 Year Trouble-Free warranty

3 Model Roland CAMM-1 GR-Series Large Format Cutters Specification

Model	GR-640	GR-540
Mechanism / Driving method	Media-movement method / Digital control servo motor
Acceptable media widths	Max. 70 in. (1,802 mm)	Max. 60 in (1,548 mm)
Maximum cutting area	Width: 65 in. (1,651 mm) Length: 984 in. (25 m)	Width: 55 in. (1,397 mm) Length: 984 in. (25 m)
Maximum cutting speed	1,485 mm/s (High speed mode - 45° direction)
Cutting speed / Cutting force	10 - 1,050 mm/s (in increments of 10 mm/s)/ 20 - 600 gf (in increments of 10 gf)
Mechanical resolution	0.005 mm/step
Software resolution	0.025 mm/step
Distance accuracy	Error of no more than +/-0.2% of distance traveled, or 0.1 mm (0.00394 In,), whichever is greater
Repetition accuracy 1 2	0.1 mm or less
Interface	Ethernet 10BASE-T / 100BASE-TX (auto-negotiation), USB 2.0 (full speed)
Buffer size	8MB (2MB for re-plot buffer)
Power supply / Consumption	AC 100 - 240 V 50/60 Hz 0.7 A/Approx. 70 W
During operation	67 dB (A) or less (according to 1507779)
During standby	43 dB (A) or less (according to 1507779)
Dimensions with stand	85.2 in. (W) x 29.1 in. (D) x 46.8 in. (H) 2,165 mm (W) x 740 mm (D) x 1,190 mm (H)	71.2 in. (W) x 29.1 in. (D) x 46.8 in. (H) 1,910 mm (W) x 740 mm (D) x 1,190 mm (H)
Weight with stand	206.1 lb. (93.5 kg)	191.8 lbs. (87 kg)
Packaging dimensions	90.5 in. (W) x 22.2 in. (D) x 30.3 in. (H) 2,300 mm (W} x 565 mm (D) x 770 mm (H)	80.7 in. (W) x 22.2 in. (D) x 30.3 in. (H) 2,050 mm (W) x 565 mm (D) x 770 mm (H)
Packaging weight	282 lbs. (128 kg)	260 lbs. (118 kg)
Operating environment	Temperature: 5 to 40 °c (41 to 104 °F), Humidity: 35 to 80% (no condensation)
Included items	Power cord, electrical plug adopter, blade (ZEC-U5032, 1pc), blade holder (XD-CH4-BL), cable clamp, replacement blades for separating knife, installation guide, USB cable (2 m), alignment tool, Roland DG software (to download), user's manual (to download)

Download Roland CAMM-1 GR-Series Large Format Cutters 54" & 64" Brochure
