Roland DG · VersaOBJECT
MO Series
UV Flatbed Printers — MO-180 & MO-240
Objects up to 8 in. thick
— a production UV flatbed that takes finished goods and parts, with a choice of two bed sizes and three ink chemistries.
The MO Series prints directly onto objects up to 8 in. thick at 1,200 dpi. Both models run EUV5, EUV-H or V-BOND ink across up to eight channels, so the same machine covers gloss, white and primer work. Choose an 18 × 12 in. bed on the MO-180, or 24 × 18 in. on the MO-240.

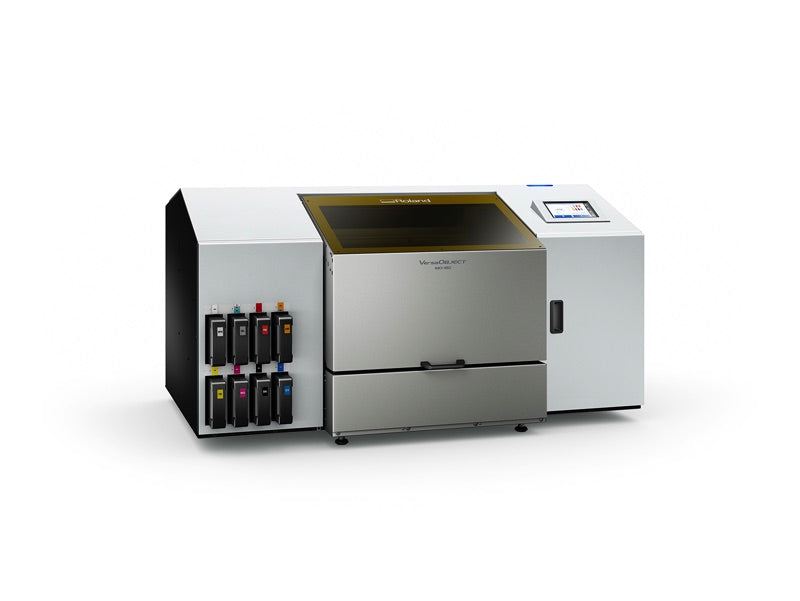

September 2026 promotional pricing. MO-180 shown. EUV5, EUV-H or V-BOND ink. Call 800-268-6577 or email sales@printfinish.com.

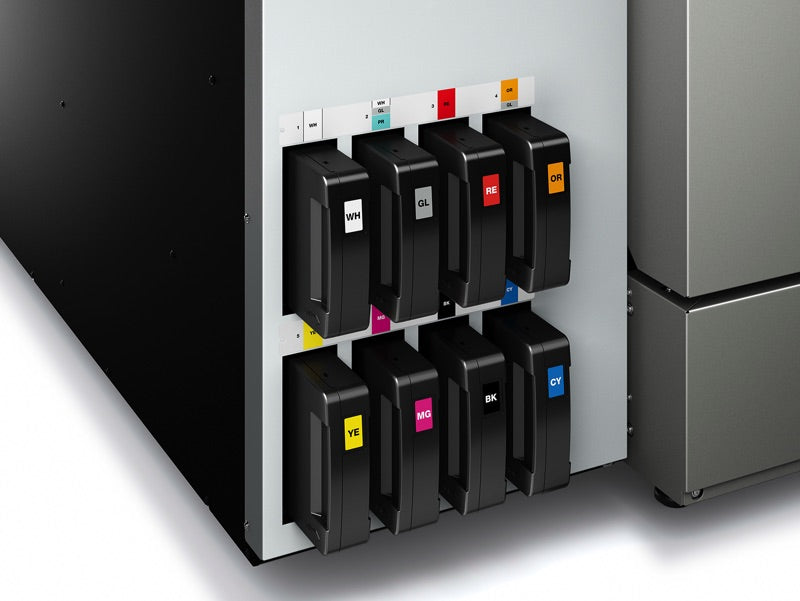

Eight Ink Channels
Gloss, white and primer without a swap
Run up to eight colours — CMYK with gloss, white, orange and red — or trade channels for double white, double gloss or primer. Because the configuration covers texture and opacity in one pass, jobs that would need two runs finish in one.
Three Ink Chemistries
Match the ink to the substrate
The MO Series takes EUV5, EUV-H or V-BOND. That choice matters when a job moves from promotional goods to industrial parts, since adhesion and flexibility requirements change with the material.
Production Handling
Built for objects, not sheets
The bed accepts pieces up to 8 in. thick at 17.6 lb, and a 7-inch display drives setup. An optional rotary rack adds cylindrical items, so bottles and tumblers run on the same machine as flat goods.
Choose your model

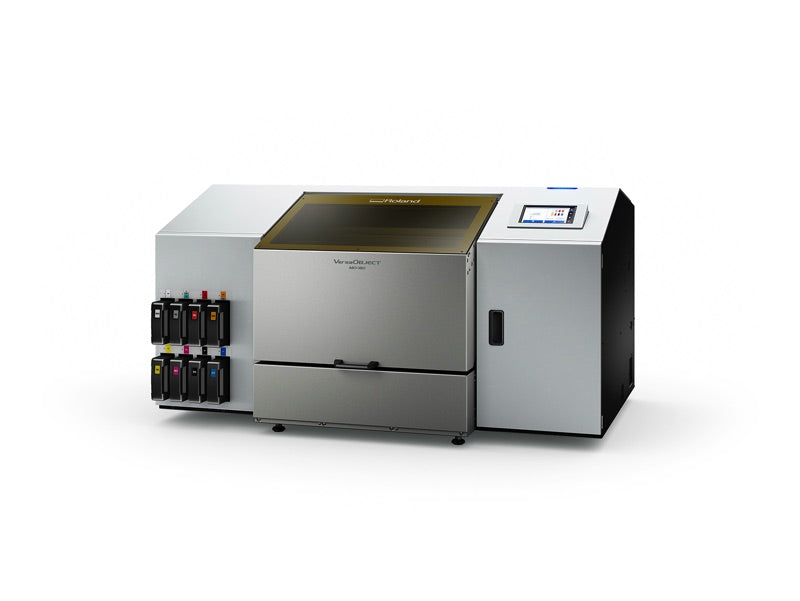

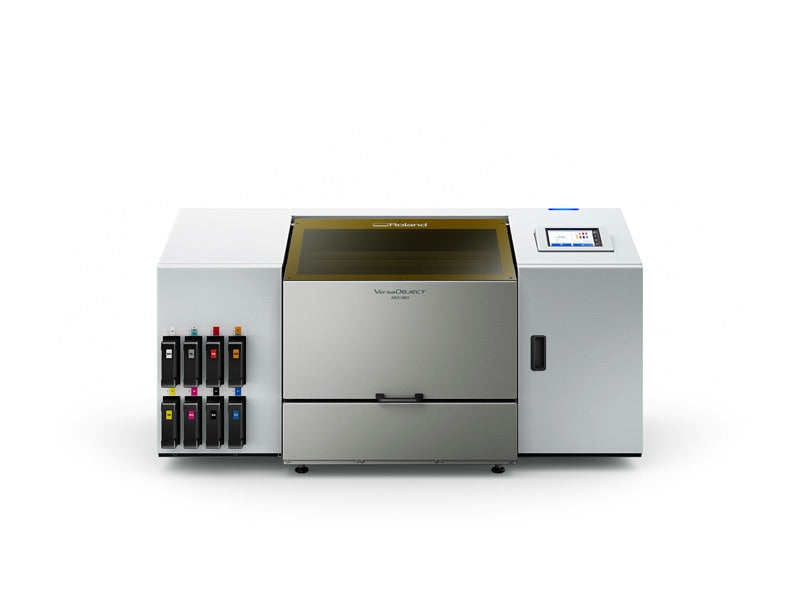

MO-180
The 18 in. model. Prints an 18 × 12 in. area with 8 in. of height clearance, taking objects to 17.6 lb. Footprint 57.1 × 37.9 × 30 in., 384 lb.
$27,995 USD / $37,995 CAD

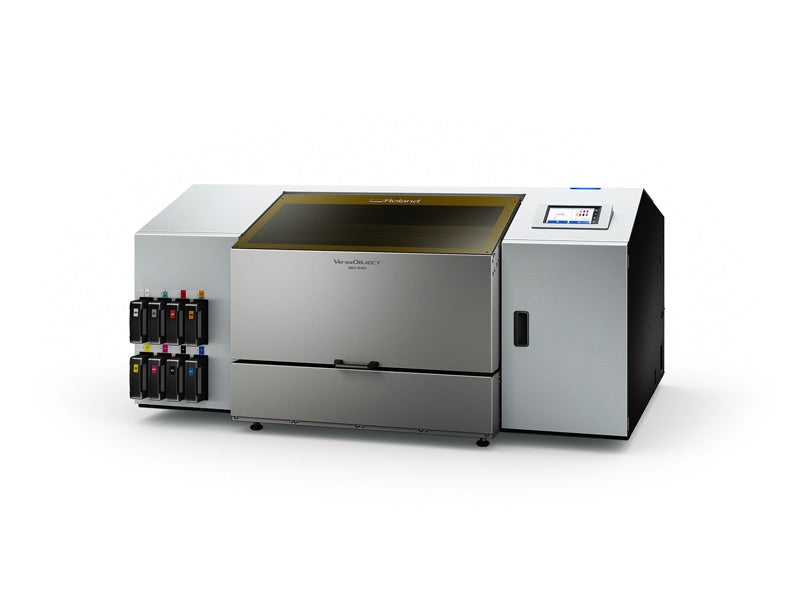

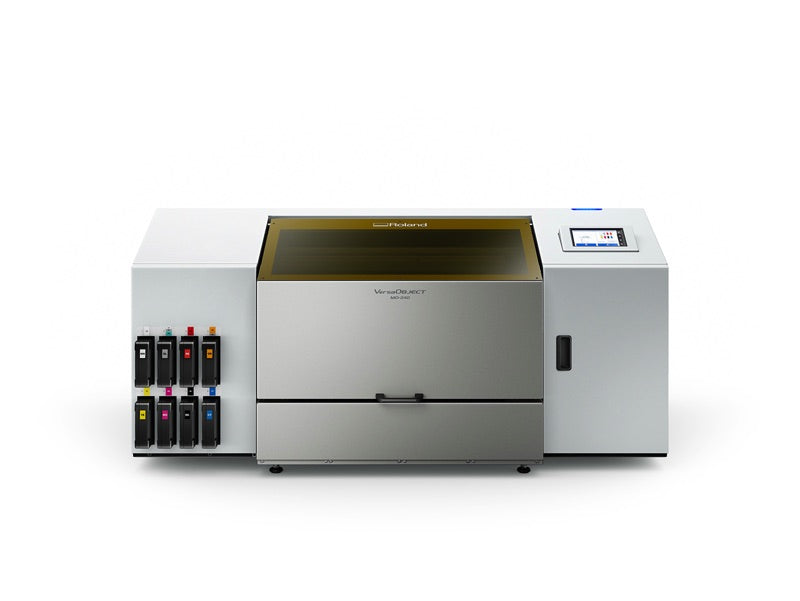

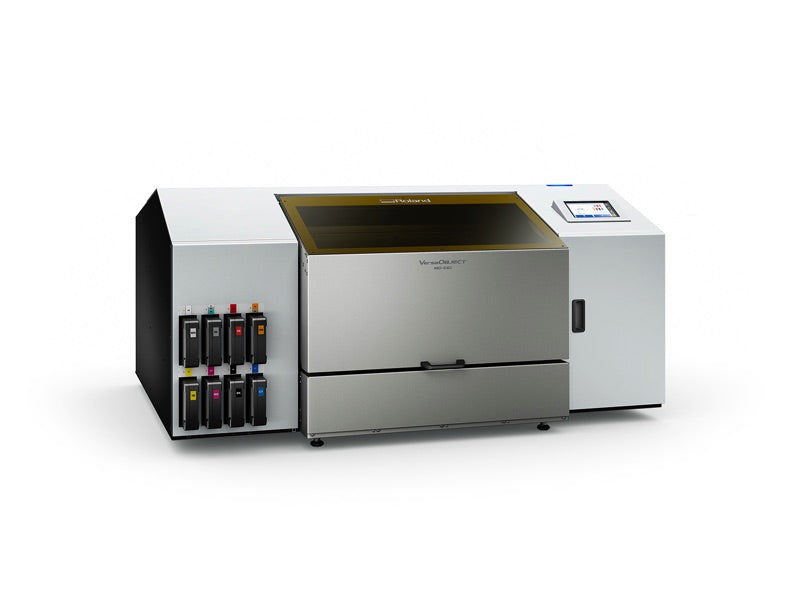

MO-240
The 24 in. model. Prints a 24 × 18 in. area and accepts objects to 25.1 × 19.2 in., 8 in. thick and 17.6 lb — or 8.8 lb on the vacuum table.
$35,295 USD / $44,995 CAD
Print directly onto the object
Finished goods, parts and awkward shapes up to 8 in. thick — flat or, with the rotary rack, cylindrical.

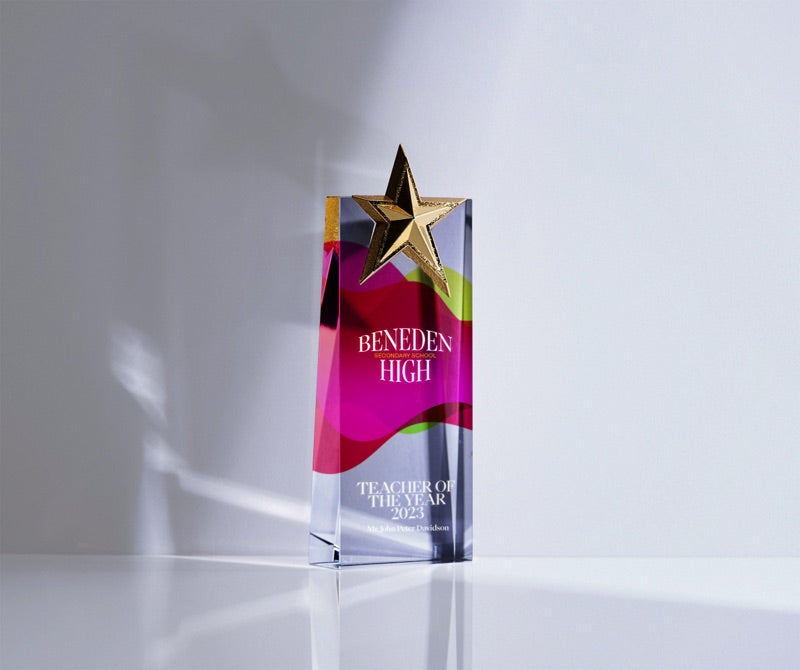

Awards & Trophies

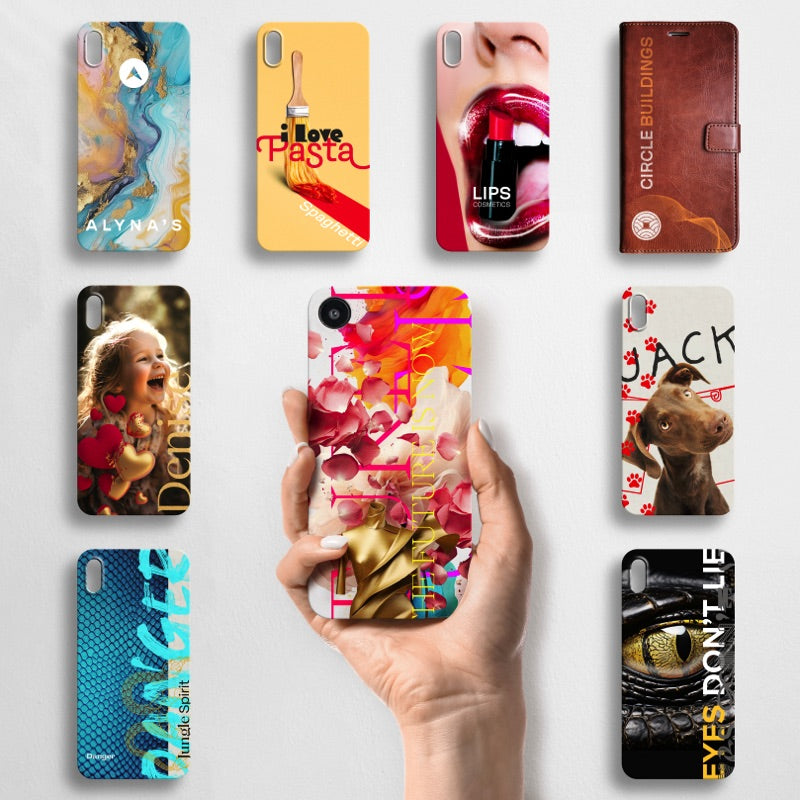

Phone Cases
Drinkware

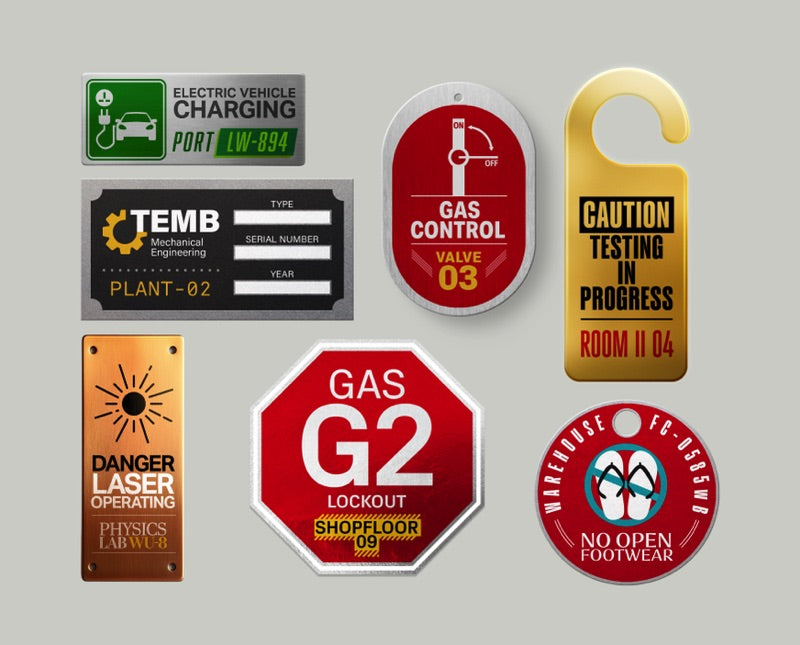

Nameplates
Keypads & Controls

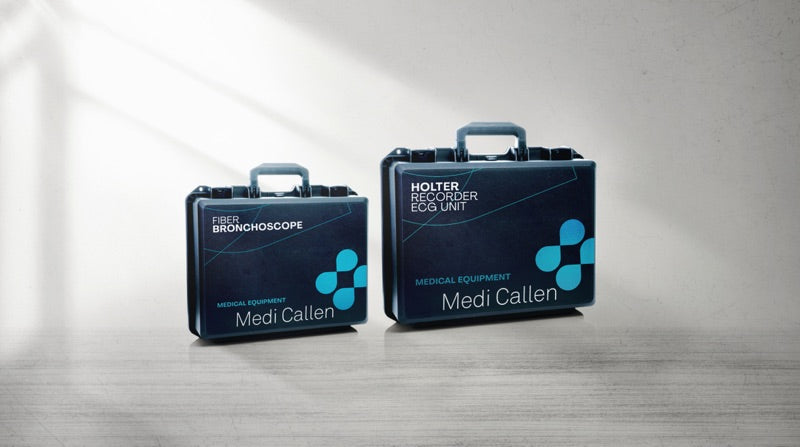

Equipment Cases
Electronics Enclosures
Promotional Goods
Signage
Consumer Products
Keycaps & Components

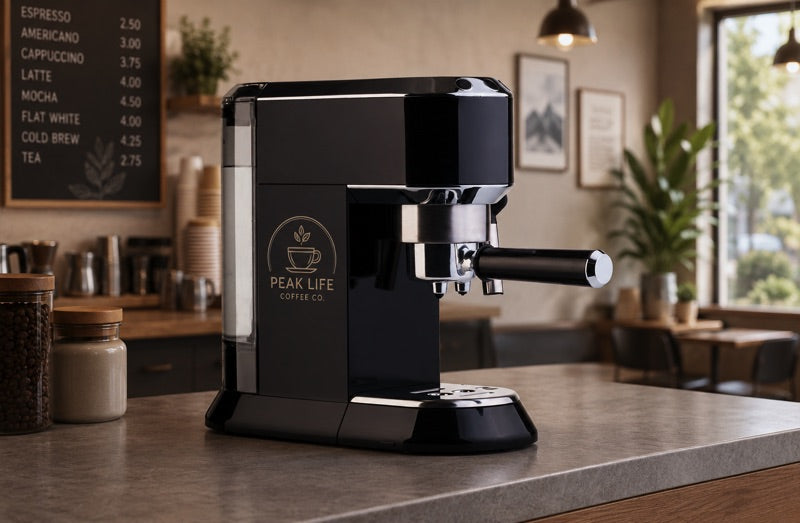

Appliance Housings
A four-step production workflow
Roland DG Connect Designer, VersaWorks 7, and the BY2-20 work together as one connected design-to-print workflow.
Prepare the file
Build the artwork, including any white or gloss layers, and send the job through VersaWorks.
Load the object
Place the piece on the bed, or mount cylindrical items on the optional rotary rack.
Set up on the display

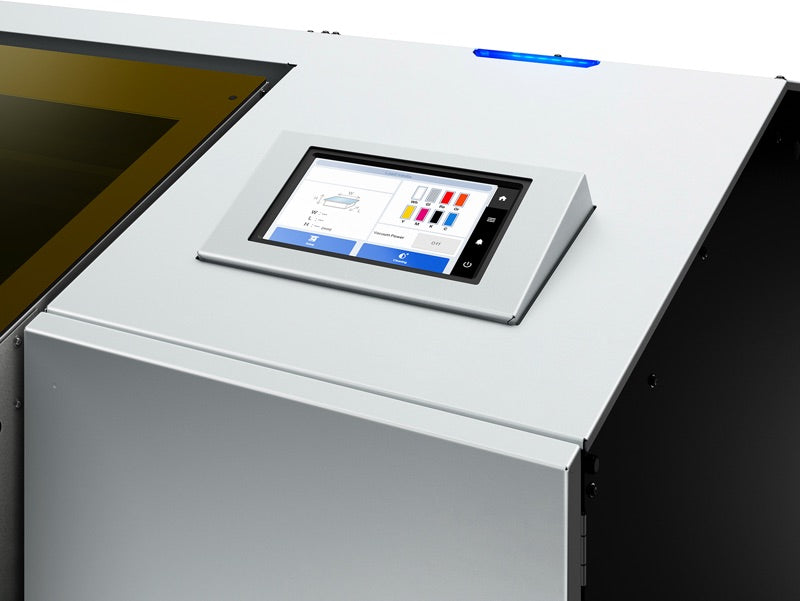

The 7-inch display handles height and print-area setup, so operators work at the machine rather than the workstation.
Print and cure
The built-in UV lamp cures as the job runs, so pieces come off the bed ready to handle or pack.
Specifications
Key specs at a glance, with the full technical sheet below.
Printing method
Piezo ink-jet, UV curing
Print area
MO-180 18 × 12 in. · MO-240 24 × 18 in.
Object thickness
Max. 8 in., both models
Object weight
Max. 17.6 lb. (8.8 lb. on the MO-240 vacuum table)
Resolution
Max. 1,200 dpi
Ink
EUV5, EUV-H or V-BOND — up to 8 channels
Power
100–240 V a.c., 50/60 Hz, 3.5 A
Weight
MO-180 384 lb. (174 kg)
Printing
Printing method
Piezo ink-jet UV
Print area
MO-180: 18 × 12 in. with 8 in. height (458 × 305 × 204 mm) · MO-240: max. 24 × 18 in.
Printing resolution
Max. 1,200 dpi
Ink-curing unit
Built-in UV lamp (MO-180: 4 in.); UV-LED on the MO-240
Objects
Width
MO-240: max. 25.1 in.
Length
MO-240: max. 19.2 in.
Thickness
Max. 8 in.
Weight
Max. 17.6 lb. (8 kg); max. 8.8 lb. when using the vacuum table
Ink
Options
EUV5, EUV-H or V-BOND (MO-240: ECO-UV EUV5P, 750 ml pouch)
Colours
Eight colours (cyan, magenta, yellow, black, gloss, white, orange, red); seven with primer; seven with double white; six with gloss and double white plus primer; six with double gloss and double white; or four colours doubled
Power and environment
Power requirements
100–240 V a.c., 50/60 Hz, 3.5 A
Power consumption
Approx. 290 W in operation; approx. 70 W in sleep
Acoustic noise
60 dB (A) or less in operation; 49 dB (A) or less in sleep
Connectivity
Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power saving
Automatic sleep feature
Environment
Operating 20 to 32 °C (68 to 89.6 °F), 35 to 80 %RH; not operating 5 to 40 °C (41 to 104 °F), 20 to 80 %RH, no condensation
Physical
Dimensions (W × D × H)
MO-180: 1,449 × 961 × 760 mm (57.1 × 37.9 × 30 in.)
Weight
MO-180: 174 kg (384 lb.)
Included items
Power cord, cleaning liquid, drain bottle, user manual, cleaning tray, plastic cartridges (9)
Options
Rotary rack
Optional, for cylindrical objects
Filtration unit
ULT Standard or Basic stand available for both models
Resources
Compatible inks
The MO series is configurable across three UV ink families, all in 750 ml pouches. The ink set is chosen at configuration.
Consumables & wear parts6 items
Genuine Roland DG parts for the MO Series. Prices in USD and CAD on each listing.
Frequently asked questions
What is the difference between the MO-180 and the MO-240?
Bed size. The MO-180 prints 18 × 12 in.; the MO-240 prints 24 × 18 in. and takes objects to 25.1 × 19.2 in. Both clear 8 in. of height and run the same ink options at 1,200 dpi, so the choice comes down to the largest piece you need to fit.
Which ink should I choose?
The MO Series accepts EUV5, EUV-H and V-BOND. EUV5 suits general personalisation, while EUV-H and V-BOND target industrial work where adhesion and flexibility on difficult substrates matter more. Tell us the material and we will advise.

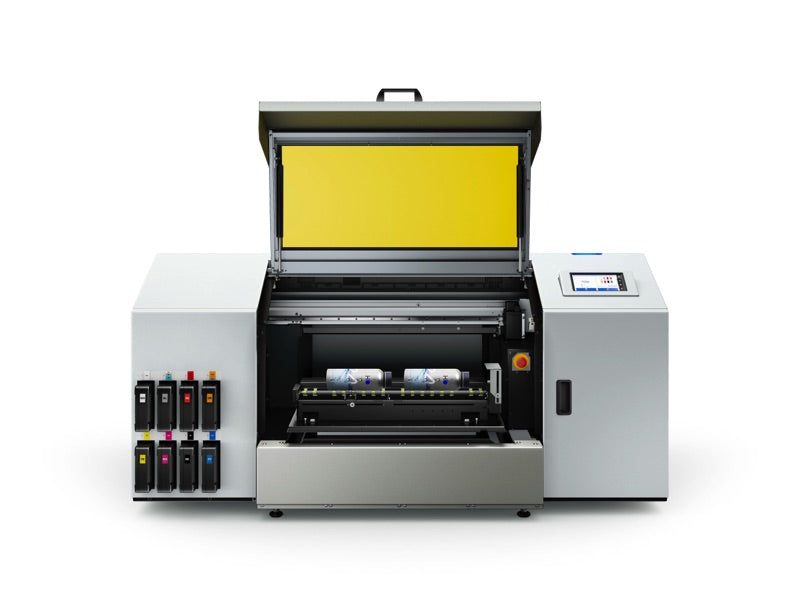

Can it print on bottles and cylindrical items?
Yes, with the optional rotary rack. That mounts the object and rotates it as the head prints, so tumblers and bottles run on the same machine as flat goods.
What does the eight-channel configuration buy me?
Gloss, white and primer alongside CMYK, plus orange and red for a wider gamut. Because texture and opacity are available in the same pass, work that would otherwise need a second run finishes in one.
Does it need special ventilation?
A ULT filtration stand is available for both models in Standard and Basic configurations, with a prefilter and an activated-carbon main filter for gas and odours. Whether you need it depends on your ink choice and room.
Request a quote
Tell us the largest piece you need to print and we'll follow up with pricing, financing options, and lead time for the MO Series.
