Roland DG · VersaStudio

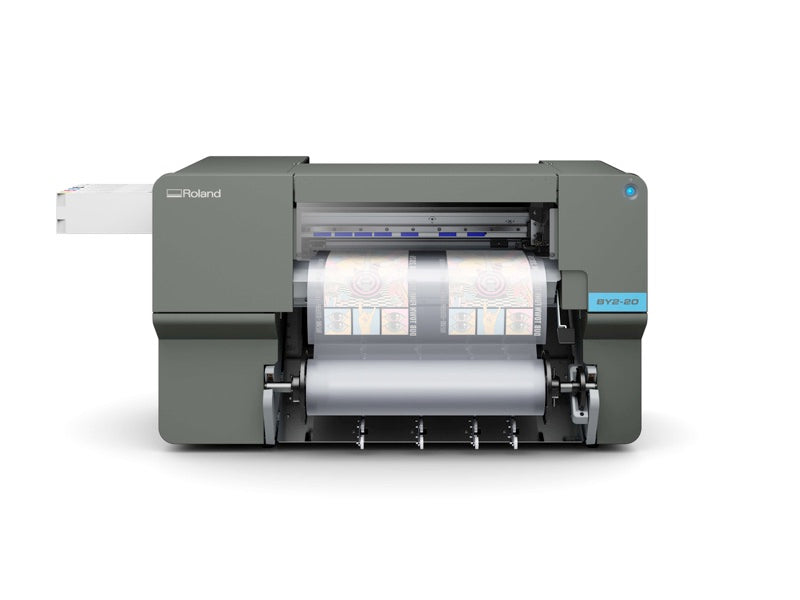

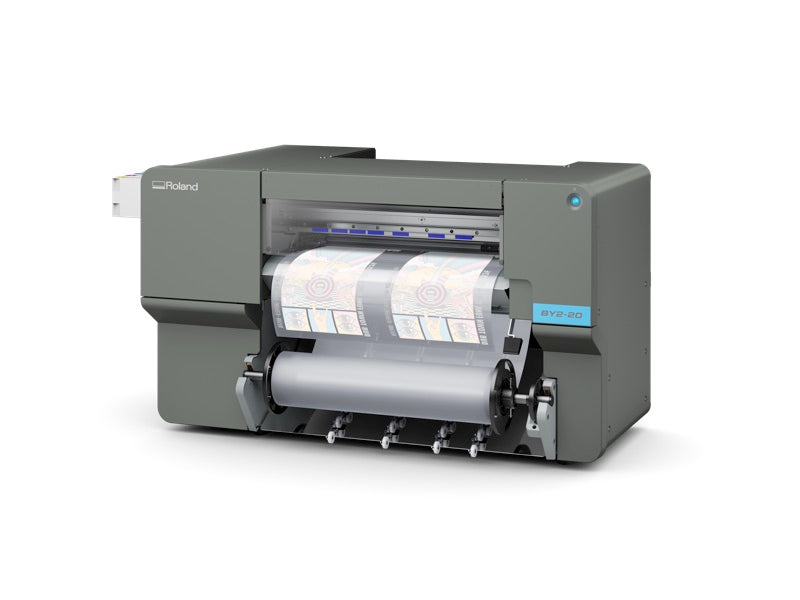

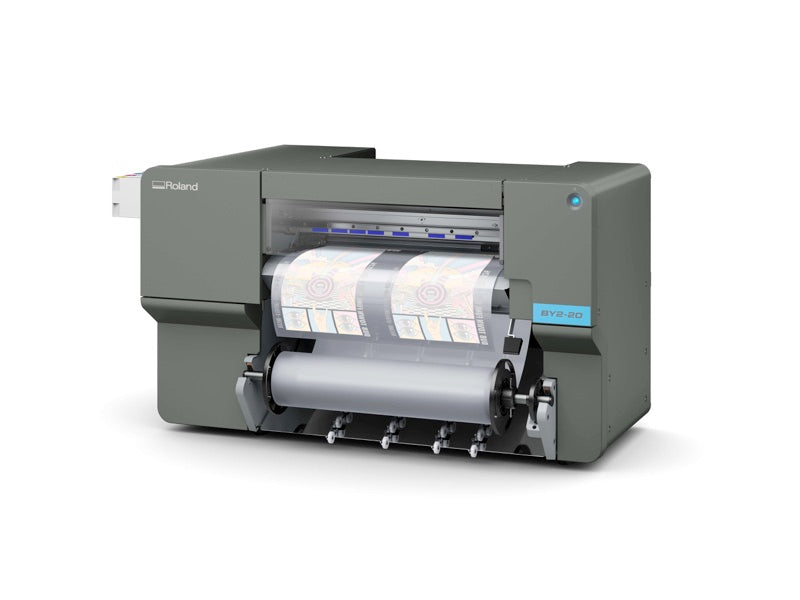

BY2-20
20" Desktop Direct-to-Film Printer
Upgraded from the BY-20
— dual white ink lines, automated white-layer generation, and a stability rate up to 98–100% (up from 69.2%).
The BY2-20 combines professional print quality, intelligent workflow automation, and advanced production stability into a compact desktop platform — built to help print shop owners and entrepreneurs enter and grow in the direct-to-film apparel market.
Call 800-268-6577 or email sales@printfinish.com for volume pricing.
Compact DTF System
Reliable day-to-day production
Controlled ink delivery and stable printhead performance support dependable output. Dual white ink configuration helps maintain density and clarity across longer runs.
Integrated Software
Connected design-to-print workflow
Roland DG Connect Designer supports artwork prep and cleanup. VersaWorks 7 manages color, white layers, and transparent PNG workflows, with automated media adjustment to reduce skew.
Standalone Cutting
Versatile apparel and graphics options
Produce transfers for cotton, polyester, denim, nylon, rayon, and blended fabrics. Print and cut in one compact device — from T-shirts and sportswear to bags and HTV jobs.
Built for everyday apparel and graphics work
Produce transfers for cotton, polyester, denim, nylon, rayon, and blended fabrics — with standalone cutting for lettering, numbering, and HTV graphics.
T-Shirts
Sportswear
Tote Bags
Aprons
Cushions
From artwork to finished garment
Roland DG Connect Designer, VersaWorks 7, and the BY2-20 work together as one connected design-to-print workflow.
Design
Create artwork in Roland DG Connect Designer — add graphics, text, and sizing.
VersaWorks 7 RIPs the file and manages white layers; the BY2-20 prints onto DTF film with S-PG2 inks.
Powder & Cure
Apply adhesive powder to the wet ink, remove excess, and cure with heat — by hand or with an automated shaker and dryer.
Press
Position the cured transfer on the garment, apply with a heat press, and peel the film.
Specifications
Key specs at a glance, with the full technical sheet below.
Printing method
Piezo ink-jet
Ink
S-PG2, 220 ml / 500 ml
Colors
CMYK + dual white
Resolution
Max. 1,440 dpi
Print/cut width
Max. 18.89 in. (480 mm)
Media width
5.91–20.27 in. (150–515 mm)
Dimensions
42.09 × 30.99 × 24.49 in.
Weight
145.51 lb. (66 kg)
General
Printing method
Piezo ink-jet method
Dimensions (W × D × H)
42.09 × 30.99 × 24.49 in. (1,069 × 787 × 622 mm)
Weight
145.51 lb. (66 kg)
Media
Width
5.91 to 20.27 in. (150 to 515 mm)
Thickness
Max. 39.3 mil (1.0 mm) with liner, for printing; max. 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting
Roll outer diameter
Max. 5.9 in. (150 mm)
Roll weight
Max. 13.22 lb. (6 kg)
Core diameter
3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width
Max. 18.89 in. (480 mm)
Ink
Type
S-PG2 ink, 220 ml or 500 ml cartridge
Colors
Five colors (cyan, magenta, yellow, black, and white ×2)
Performance
Printing resolution
Max. 1,440 dpi
Cutting speed
0.4 to 5.9 in./sec (10 to 150 mm/sec)
Connectivity
Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function
Automatic sleep feature
Power & Sound
Rated input
100-240 VAC, 50/60 Hz, 2.1 A
Power consumption — operation
Approx. 185 W
Power consumption — sleep
Approx. 32 W
Acoustic noise — operation
62 dB (A) or less
Acoustic noise — standby
60 dB (A) or less
Included
Included items
Power cord, media holders, replacement blade for separating knife, User's Manual, Software (VersaWorks, Roland DG Connect)
Resources
Compatible inks
The BY2-20 runs Roland garment DTF ink in either cartridge size.
DTF Film
Roland Direct Transfer System film for the BY2-20. Cold-peel PET film matched to the S-PG2 ink set.
DTF Powder
Hot-melt adhesive powder for DTF transfers, in 1 kg bags.
Consumables & wear parts12 items
Genuine Roland DG parts for the BY2-20. Prices in USD and CAD on each listing.
Head Wiper VS-640
Cutter Pad BN-20
Scraper Sheet BN-20
Head Wiper Felt CG2246
Drain Pad Assembly SV CG2246
Cap Top Assembly SV CG2246
Media Clamp Assembly L SV CG2246 (Left)
Media Clamp Assembly R SV CG2246 (Right)
Pinch Roller Assembly L CG2246 (Left)
Pinch Roller Assembly R CG2246 (Right)
S-PG2-CL Cleaning Liquid, 100 ml
OLFA XB10 Cross-Cut Blade, 25-Pack
Blades & blade holders16 items
45° / .25 Offset Blade, 1 ea. – All Purpose
45° / .25 Offset Blade, 3-Pack – All Purpose
45° / .25 Offset Blade, 5-Pack – All Purpose
60° / .10 Offset Blade, 1 ea. – Thick Materials
60° / .10 Offset Blade, 3-Pack – Thick Materials
25° / .125 Offset Blade, 5-Pack – Thin Materials
45° / .25 Offset Premium Blade, 2-Pack – Standard Materials
45° / .25 Premium Blade, 5-Pack – All Purpose
45° / .25 Premium Blade, 5-Pack – Standard Materials
60° / .50 Premium Blade, 5-Pack – Sandblast
60° / 1.00 Premium Blade, 5-Pack – Thick Materials
55° / .5 Offset Blade, 2-Pack – Window Tint
Blade Holder, Adjustable Tip, Regular
Blade Holder, Adjustable Tip, Alloy — Blue
Blade Holder, Adjustable Tip, Alloy — Orange
Blade Holder, Adjustable Tip, Alloy — RedFrequently asked questions
What is the Roland VersaSTUDIO BY2-20?
The BY2-20 is a 20-inch desktop direct-to-film (DTF) printer. It prints CMYK plus dual white onto DTF film at up to 1,440 dpi, and includes standalone cutting, so one compact device handles both transfer printing and cut vinyl work.
What fabrics can the BY2-20 print on?
DTF transfers from the BY2-20 apply to cotton, polyester, denim, nylon, rayon, and blended fabrics. Because the design is printed onto film and then heat-pressed, it works across fabric types that direct-to-garment printing struggles with.
How wide can the BY2-20 print?
Maximum printing and cutting width is 18.89 in. (480 mm). It accepts media from 5.91 to 20.27 in. (150 to 515 mm) wide, on a 2 in. or 3 in. core.
How is the BY2-20 different from the BY-20?
The BY2-20 adds a second white ink line, automated white-layer generation, and substantially improved production stability — up to 98–100%, compared with 69.2% on the BY-20.
What ink does the BY2-20 use?
S-PG2 ink in 220 ml or 500 ml cartridges, across five channels: cyan, magenta, yellow, black, and two whites. The dual white configuration helps hold density and opacity across longer runs.
What else do I need to start producing DTF transfers?
Beyond the printer you need DTF film, adhesive powder, a way to cure the powder with heat, and a heat press to apply the finished transfer. Powdering and curing can be done by hand when starting out, or with an automated shaker and dryer as volume grows.
Does the BY2-20 cut as well as print?
Yes. Standalone cutting runs at 0.4 to 5.9 in./sec (10 to 150 mm/sec), which covers lettering, numbering, and heat-transfer vinyl graphics without a separate cutter.
What software comes with the BY2-20?
Roland DG Connect Designer for artwork preparation and cleanup, and VersaWorks 7 to RIP files and manage colour, white layers, and transparent PNG workflows. Both are included.
How much space and power does the BY2-20 need?
The printer measures 42.09 × 30.99 × 24.49 in. (1,069 × 787 × 622 mm) and weighs 145.51 lb. (66 kg). It runs on 100–240 VAC, 50/60 Hz, 2.1 A, drawing approximately 185 W in operation, and connects over Ethernet.
Can I lease the BY2-20 instead of buying it?
Yes. The BY2-20 is sold by quote, and many buyers finance or lease rather than purchase outright. Request a quote and tell us which you are considering — we will come back with pricing, financing options, and lead time.
Request a quote
Tell us a bit about your business and we'll follow up with pricing, financing options, and lead time for the BY2-20.
