WireMac-Duo Akiles Wire Binding Machine
available:
10
WireMac-Duo Akiles Wire Binding Machine Specification of WireMac-Duo Wire Binding Machine Punches and closes both 3:1 and 2:1 pitch wires 20 sheets single punching capacity (20 lbs paper) 14" width punching capacity with open sides for even wider documents All dies can be independently disengaged Closing capacity: From 3/16" to...

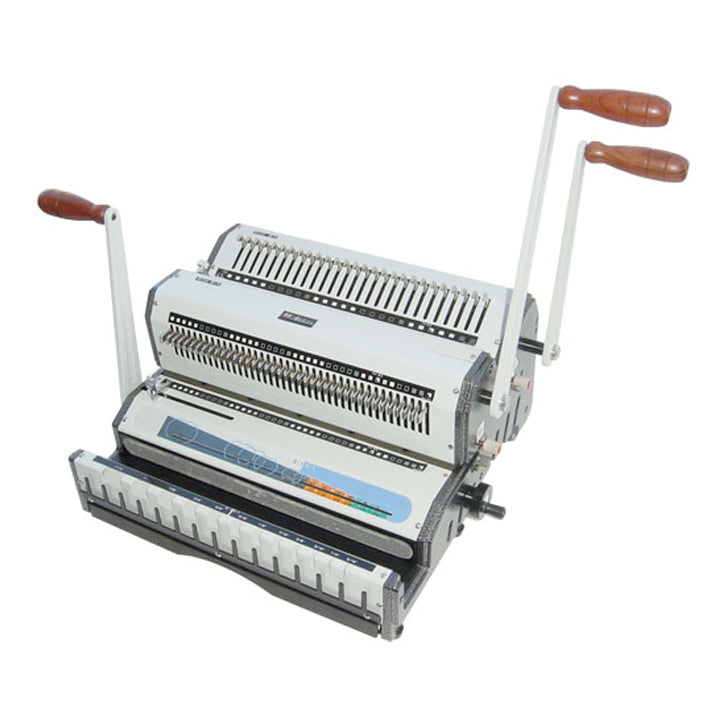

WireMac-Duo Akiles Wire Binding Machine
- Specification of WireMac-Duo Wire Binding Machine
- Punches and closes both 3:1 and 2:1 pitch wires
- 20 sheets single punching capacity (20 lbs paper)
- 14" width punching capacity with open sides for even wider documents
- All dies can be independently disengaged
- Closing capacity: From 3/16" to 1-1/4"
- All metal construction

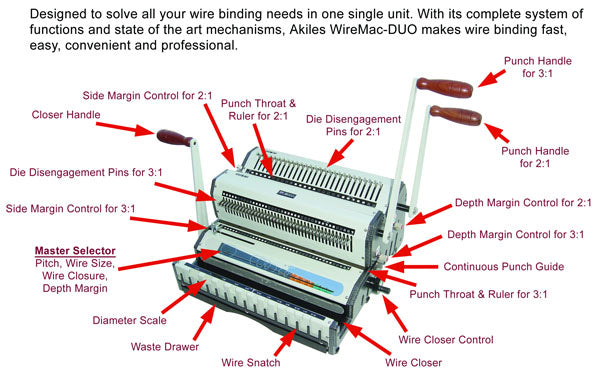

| Punching Pitch: | 3:1, 3 holes per 1" | 2:1, 2 holes per 1" |
| Disengageable Dies: | 40 dies | 27 dies |
| Punching Holes: | Square 4mm x 4mm | Rectangular 4mm x 5.5mm |
| Binding Capacity: | 3/16" - 9/16" | 5/8 - 1-1/4" |
| Punching Length: | 14" with open throats for longer documents. | |
| Punching Capacity: | 20 sheets of 20 lbs bond paper | |
| Die Disengagement Pins: | For a clean and complete punching with different paper sizes. | |
| Continuous Punch Guide (3:1 Only) & Open Throats: | For punching documents larger than 14". | |
| Depth Margin Controls: | Provides the correct punching margin depth needed for all wire sizes and maximizes the document's tear resistance. | |
| Side Margin Controls: | Provides a well-centered punch for all document sizes. | |
| Master Selector: | Determines the correct: Wire Diameter, Closing Position, Depth Margin, Wire Pitch. | |
| Diameter Scale: | Measures document's thickness in order to select best wire size option. | |
| Wire Closer Control: | Adjusts the wire closer to close wires from 3/16" to 1-1/4" | |
| Closing Mechanism: | Vertical | |
| Wire Snatch: | Holds wire in place for easier inserting of sheets. | |
| Warranty: | One Year | |
| Weight & Cubit Feet | 53 Lbs & 2.22 CbFt | |
