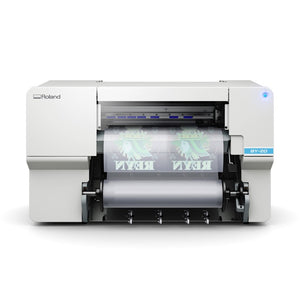

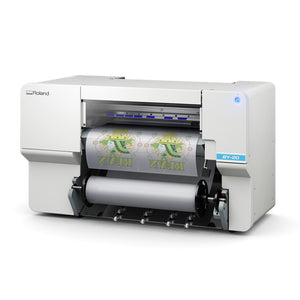

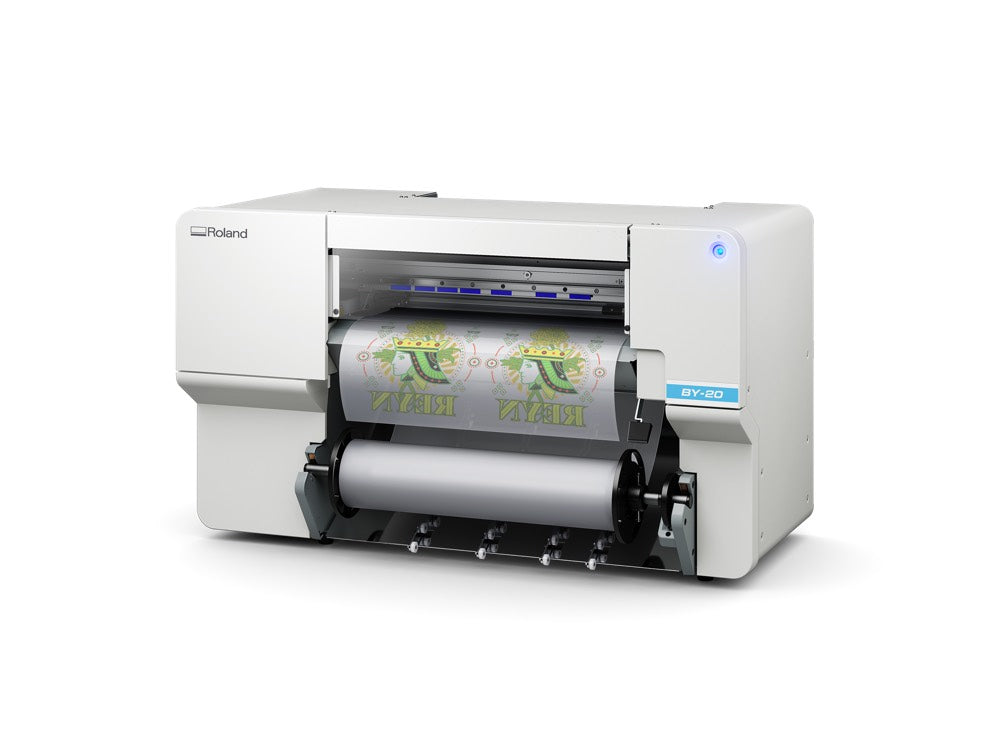

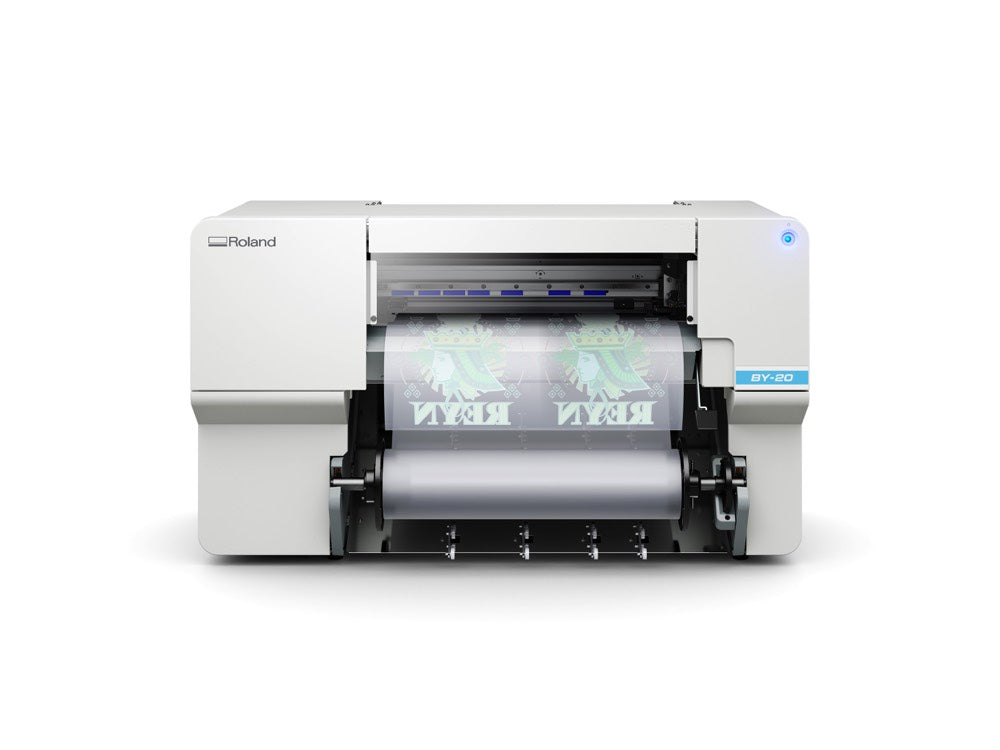

Roland VersaStudio BY-20 Desktop Direct-to-Film Printer

Roland VersaStudio BY-20

The Roland Versa Studio BY-20 printer offers extraordinary product customization. | It's a highly versatile desktop device ideal for a range of direct-to-film apparel applications, such as creating custom T-shirts, sportswear, tote bags, and more with your Roland Versa Studio BY-20.

{price}% OFF

Get the best price on this machine, send for a quote

Name:

Phone:

Name:

QUOTE

Please do not order online with Credit Card. Credit will be refunded less the Credit Card Fees.

Roland Versa Studio BY-20 - Desktop Direct-to-Film Printer

The Roland Versa Studio BY-20 printer offers extraordinary product customization.

The Roland Versa Studio BY-20 is a direct-to-film apparel applications, such as creating custom T-shirts, sportswear, tote bags, and more.

Use the Roland Versa Studio BY-20 integrated contour-cutting capabilities to produce jersey numbers and other heat transfer graphics, provides professional-grade print performance at an entry-level price, making it an ideal choice for start-ups and small, growing businesses with budget considerations.

Roland Versa Studio BY-20 Features:

STARTER PRICE	COMPACT SIZE	AFFORDABLE, SAFE AND RELIABLE
The BY-20, priced to suit the budgets of those just getting started, is a professional-level printer. It includes design and output software, allowing you to begin printing right out of the box.	Compact enough to sit on your desktop, the BY-20 is ideal for your home office or shop. Setup, ink loading, and maintenance can be executed from the front of the printer, further minimizing space requirements.	Reliability comes standard with the BY-20, so you can count on smooth, consistent performance. Easy-to-follow instructions and intuitive engineering make periodic maintenance and consumable replacement a breeze.

Specs:

Printing Method		Piezo ink-jet method
Media	Width	5.91 to 20.2 in. (150 to 515 mm)
	Thickness	Maximum 39.3 mil (1.0 mm) with liner, for printing Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting
	Roll outer diameter	Maximum 5.9 in. (150 mm)
	Roll weight	Maximum 13.2 lb. (6 kg)
	Core diameter	3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width (*1)		Maximum 18.89 in. (480 mm)

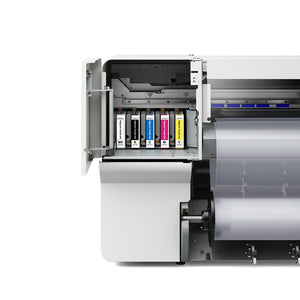

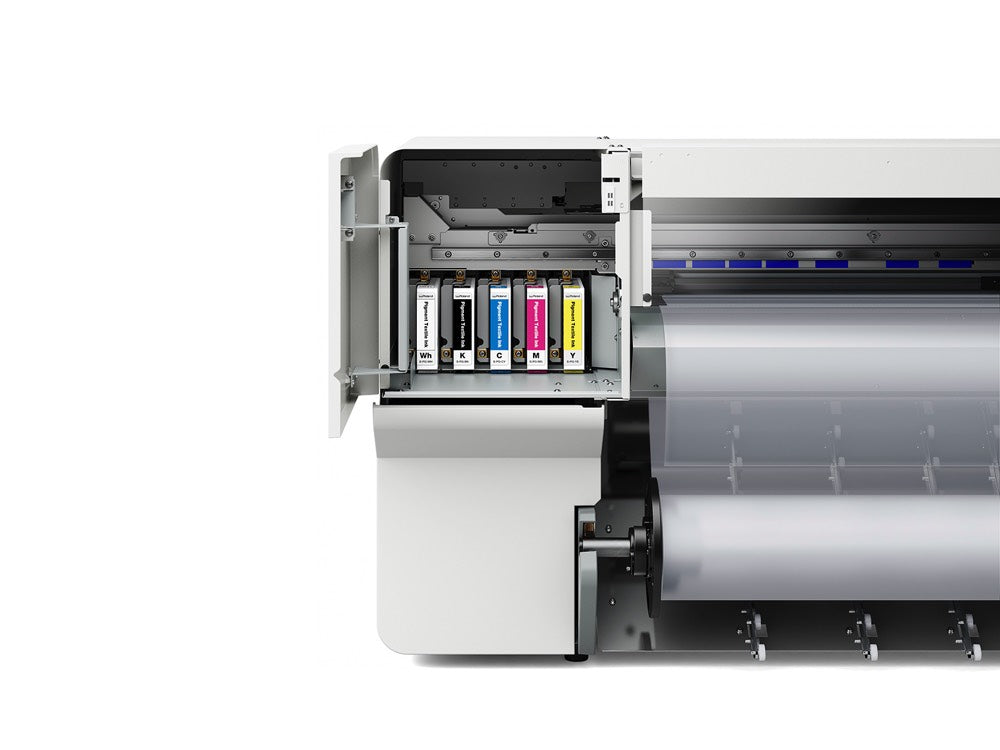

Ink	Type	220-ml cartridge
Ink	Colors	Cyan, Magenta, Yellow, Black, White
Printing resolution (dots per inch)		Maximum 1,440 dpi
Cutting speed		0.39 to 5.9 in/s (10 to 150 mm/s)
Blade force (*2)		30 to 500 gf
Blade	Type	Roland CAMM-1 series blade
Blade	Offset	0.000 to 1.500 mm (0.0 to 59 mil)
Software resolution (when cutting)		0.025 mm/step (0.98 mil/step)
Media heating system (*3)	Print heater set temperature:	86 to 95 °F (30 to 35 °C)
Media heating system (*3)	Dryer set temperature:	86 to 100.4 °F (30 to 38 °C)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Rated input		100-240 Va.c. 50/60 Hz 2.1 A
Power consumption	During operation	Approx. 185 W
Power consumption	Sleep mode	Approx. 27W
Acoustic noise level	During operation	62 dB (A) or less
Acoustic noise level	During standby	60 dB (A) or less
Dimensions (Width x Depth x Height)		42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm)
Weight		137 lb. (62 kg)
Environment	During operation (*4)	Temperature: 68 to 89.6 °F (20 to 32 °C) Humidity: 40 to 80 % RH (no condensation)
Environment	Not operating	Temperature: 41 to 104 °F (5 to 40 °C) Humidity: 20 to 80 % RH (no condensation)
Included items		Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, User's Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc.
1 The length of printing or cutting is subject to the limitations of the program. 2 500 gf is the maximum instantaneous blade force. Adjust the blade force based on details such as the media thickness. 3 Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. 4 Operating environment (Use in an operating environment within this range.)

Heavy signal show to the customer to call to the sales staff about shipping costs

Please do not order online with a Credit Card. Credit will be refunded less the Credit Card Fees.

Product vendor	Roland DG
Product type	printers
Product tags	by , Flatbed Printer , printers , roland , UV , versa , versastudio
Product collections	Roland Brand Collection
