Roland DG · TrueVIS

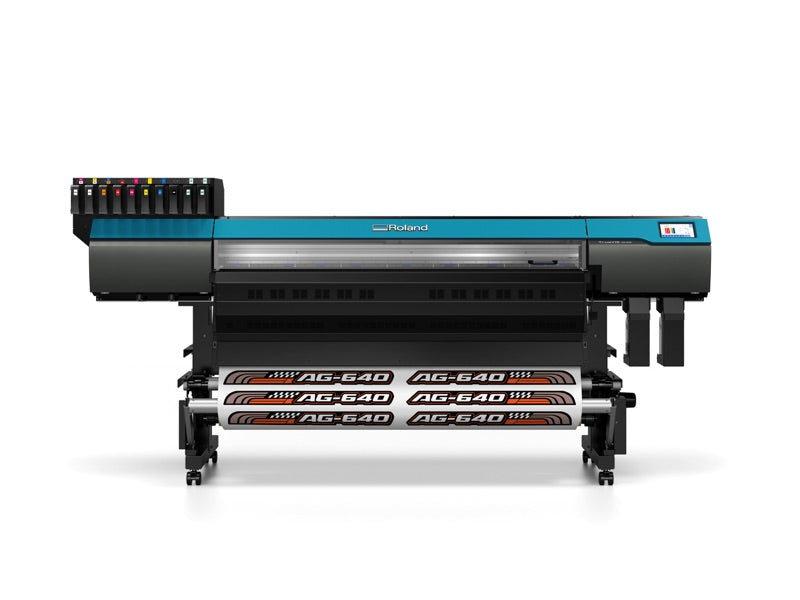

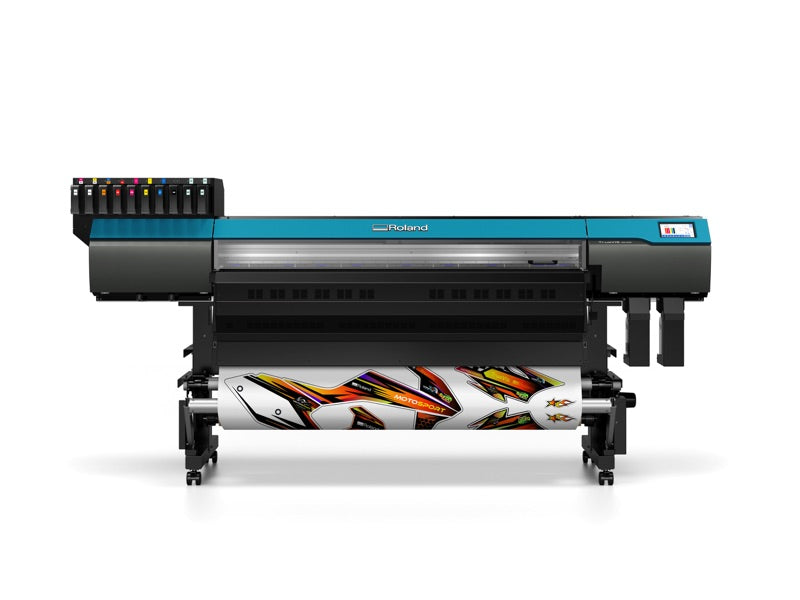

AG-640
64" Latex Printer/Cutter
Print and cut in one pass
— the first latex printer with contour cutting built in, so a graphic leaves the machine finished instead of moving to a second device that has to be re-aligned.

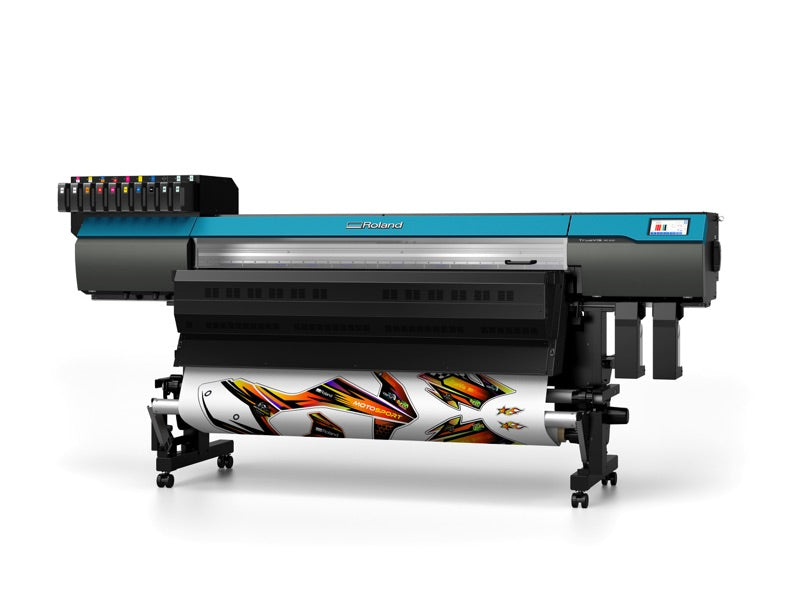

The AG-640 pairs latex printing with a built-in cutting carriage, so one machine covers the whole job. Seven-colour ink adds orange, red and white to CMYK for a wider gamut, and the redesigned media transport and dryer keep long runs steady. Prints and cuts media up to 64 in. wide.
TA2 latex ink in 750 ml pouches. Call 800-268-6577 or email sales@printfinish.com.
Integrated Print and Cut
One machine, finished graphics

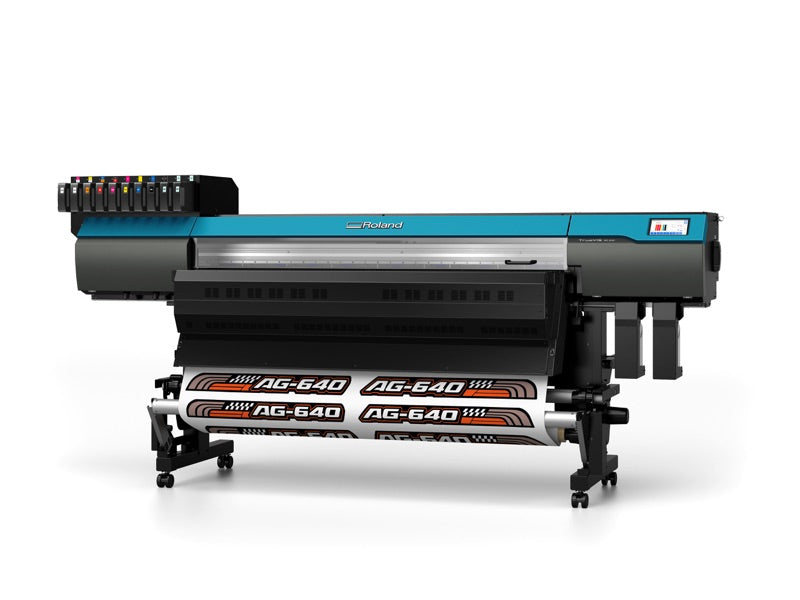

Contour cutting comes standard, so prints and cuts happen on the same device. That removes a second machine from the floor and the alignment step between them. Cutting runs 10 to 300 mm/s with 30 to 500 gf of blade force, using Roland CAMM-1 series blades.
Seven-Colour Latex
A wider gamut for brand colour
Orange, red and white join CMYK and optimizer, so the AG-640 reaches vivid shades and difficult brand colours that a four-colour machine cannot. A four-colour plus optimizer configuration is also available when the extra gamut is not needed.
New Printhead and Ink
Fine detail at production speed
Two staggered printheads split the work: the rear head lays optimizer across four nozzle rows, while the front head prints colour across eight. At 300 npi per row the colour head varies droplet size for smooth gradations, and TA2 ink refills from 750 ml pouches.
What the AG-640 produces
Latex printing with contour cutting in one pass, on roll media up to 64 in. wide.
Vehicle Graphics
Window Graphics
Signage & Display
Exhibition Graphics
Print & Cut Decals
Interiors
A four-step production workflow
Prepare the file
Lay out the graphic and its cut path in your design software, then send the job to VersaWorks 7.
Load the media
Roll media 355 to 1,625 mm wide drops onto the machine, and the redesigned transport keeps it tracking through the run.
Print and cut
The AG-640 prints, cures and contour cuts in sequence, so the graphic comes off the machine ready to weed or apply.
Track the job
Roland DG Connect reports status, ink use and running costs, so you can price the next job from real numbers.
Specifications
Printing method
Piezo ink-jet
Print/cut width
Max. 1,600 mm (62.99 in.)
Media width
355 to 1,625 mm (13.98 to 63.97 in.)
Resolution
Max. 1,200 dpi
Ink
Latex, 750 ml pouch — 7 colours + optimizer, or 4 colours + optimizer
Print speed
Up to 166.8 ft²/h (15.5 m²/h) in 6-pass Hi Speed
Cutting speed
10 to 300 mm/s (0.39 to 11.8 in./s)
Dimensions
118.27 × 34.09 × 55.59 in.
Weight
591 lb. (268 kg)
Printing
Printing method
Piezo ink-jet method
Printing/cutting width
Max. 1,600 mm (62.99 in.)
Printing resolution
Max. 1,200 dpi
Ink drying system
Print heater 25 to 45 °C (77 to 113 °F); dryer 70 to 94 °C (158 to 201.2 °F)
Media
Width
355 to 1,625 mm (13.98 to 63.97 in.)
Thickness
Max. 1.0 mm (39.37 mil) with liner for printing; max. 0.4 mm (15.74 mil) with liner and 0.22 mm (8.66 mil) without liner for cutting
Roll outer diameter
Max. 250 mm (9.84 in.)
Roll weight
Max. 45 kg (99.2 lb.)
Core diameter
76.2 mm (3 in.) or 50.8 mm (2 in.)
Ink
Type
Latex ink, 750 ml pouch
Colours
Seven colours (cyan, magenta, yellow, black, white, orange, red) and optimizer; or four colours (cyan, magenta, yellow, black) and optimizer
Cutting
Cutting speed
10 to 300 mm/s (0.39 to 11.8 in./s)
Blade force
30 to 500 gf
Blade type
Roland CAMM-1 series blade
Blade offset
0.000 to 1.500 mm (0.000 to 0.059 in.)
Software resolution
0.025 mm/step (0.98 mil/step)
Power and environment
Rated input
Printer 200–240 V a.c., 50/60 Hz, 3 A; printer outlet 200–240 V a.c., 50/60 Hz, 3 A; blower 1 12 A; blower 2 10 A
Power consumption
Approx. 4,200 W in operation; approx. 60 W in sleep
Acoustic noise
70 dB (A) or less in operation; 68 dB (A) or less on standby
Connectivity
Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power saving
Automatic sleep feature
Physical
Dimensions (W × D × H)
3,004 × 866 × 1,412 mm (118.27 × 34.09 × 55.59 in.)
Weight
268 kg (591 lb.)
Frequently asked questions
Does the AG-640 really print and cut on one machine?
Yes. Contour cutting is standard rather than an add-on, so a job prints, cures and cuts in sequence without moving to a separate cutter. That removes the alignment step between two devices, which is where registration errors usually creep in.
What is the difference between the four-colour and seven-colour configurations?
Four-colour runs CMYK plus optimizer. Seven-colour adds orange, red and white, which widens the gamut for vivid shades and brand colours, and lets you print white for clear or coloured media. Both use the same 750 ml TA2 pouches.
What media can it handle?
Roll media from 355 to 1,625 mm (13.98 to 63.97 in.) wide, up to 1.0 mm thick with liner for printing. Rolls can be up to 250 mm in outer diameter and 45 kg, on a 2 in. or 3 in. core.
What power does it need?
Two 200–240 V a.c. supplies. The printer and its outlet draw 3 A each, and the two blowers draw 12 A and 10 A. Plan for roughly 4,200 W while running. Connect the cords to separate breakers.
What software ships with it?
VersaWorks 7 handles RIP and job setup, and Roland DG Connect reports device status, ink use and running cost so you can price jobs from actual figures.
