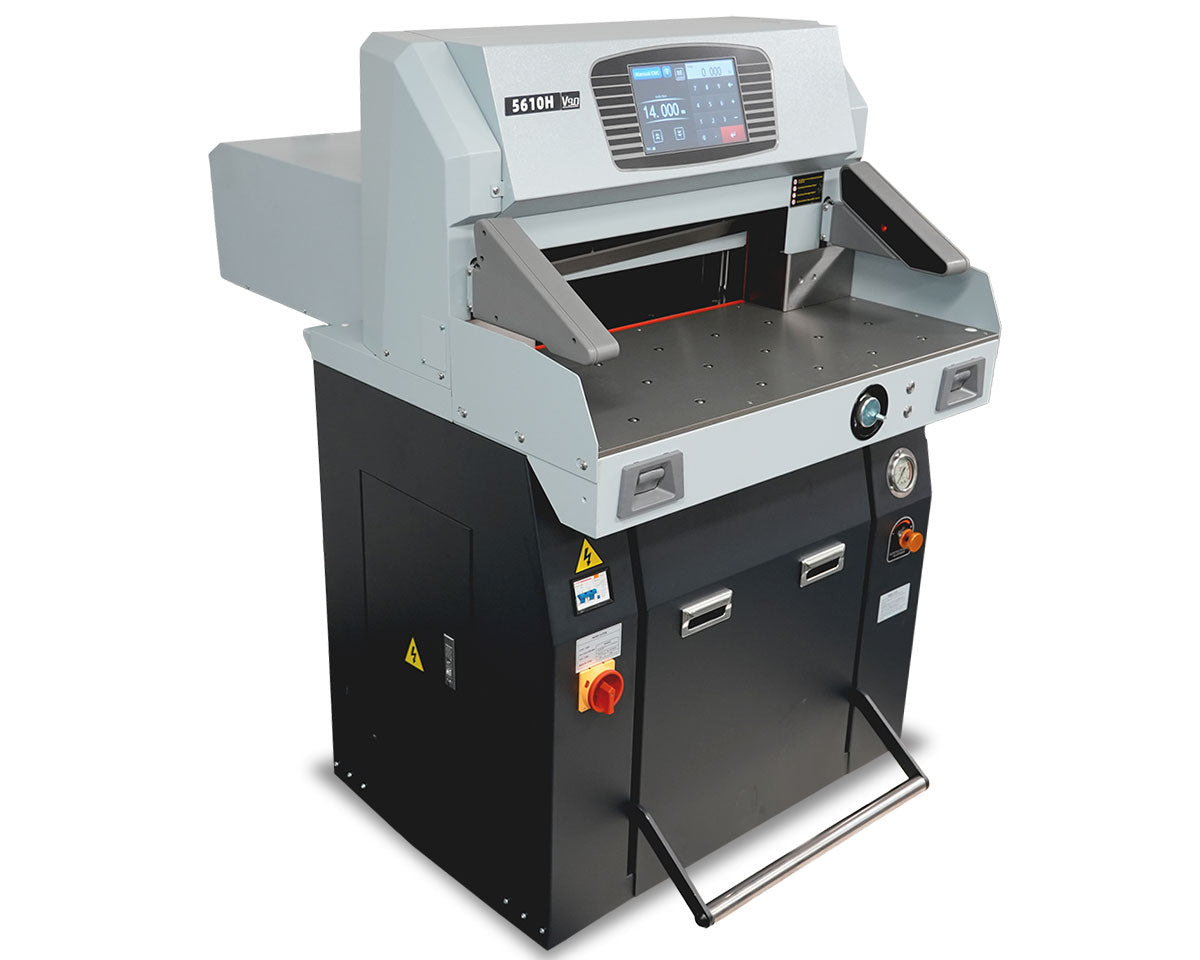

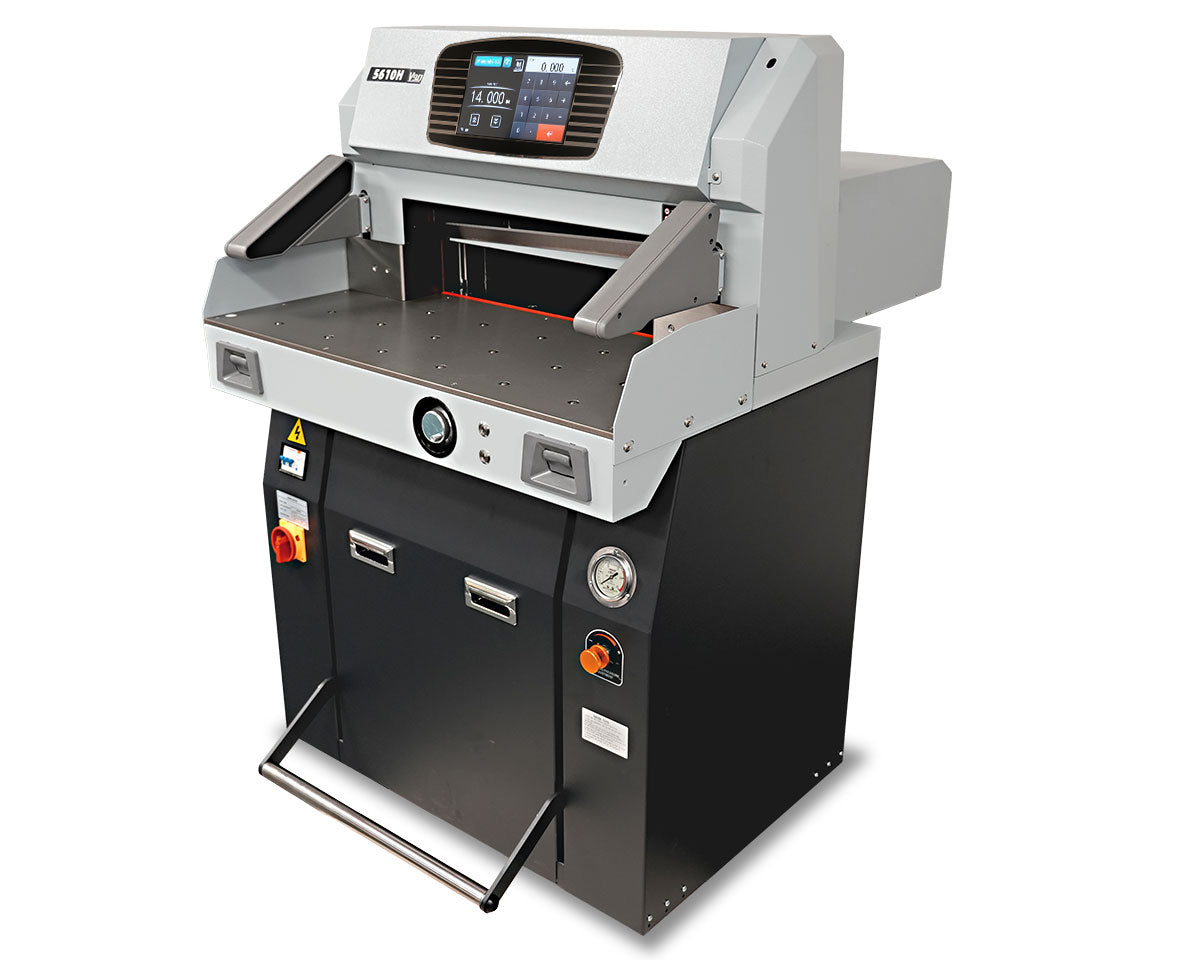

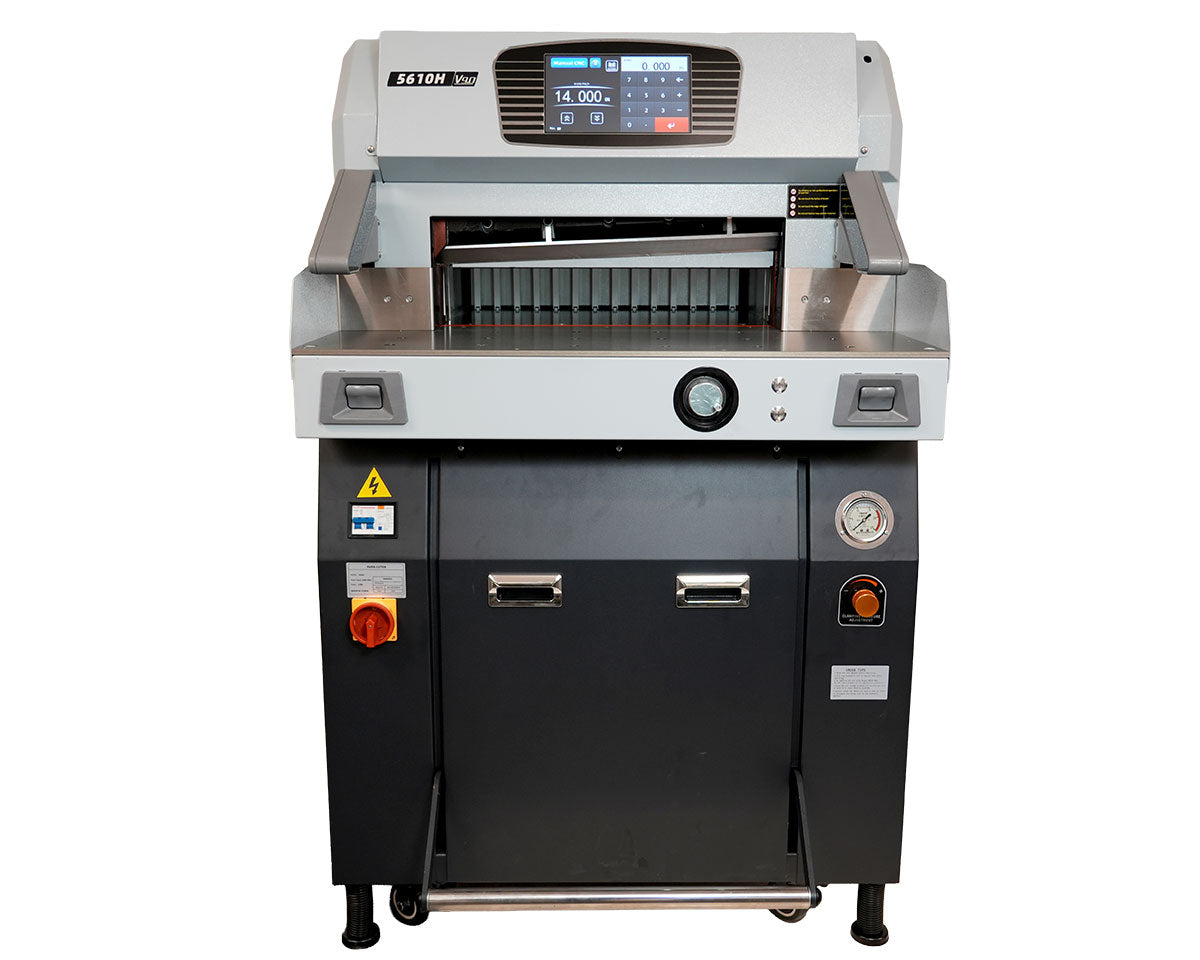

Boway Model 5610H Programmable Hydraulic Cutter 22" Wide

The Boway 5610H is a state-of-the-art hydraulic paper cutter. This machine handles high-volume, precise cutting for commercial printing and bindery operations.. This machine pairs strong hydraulic power with a smart 10.2” touchscreen. It offers easy programming and delivers high accuracy and efficiency for all paper-cutting tasks.

Product Features:

Enhanced Operator Safety
Aluminum Table (Air Optional)
Powerful Hydraulic Operation
External Hydraulic Control
Advanced Programmable Control
High-Performance Servo Motor
Versatile Cutting Capacity
Optional Side Tables

Key Features & Benefits

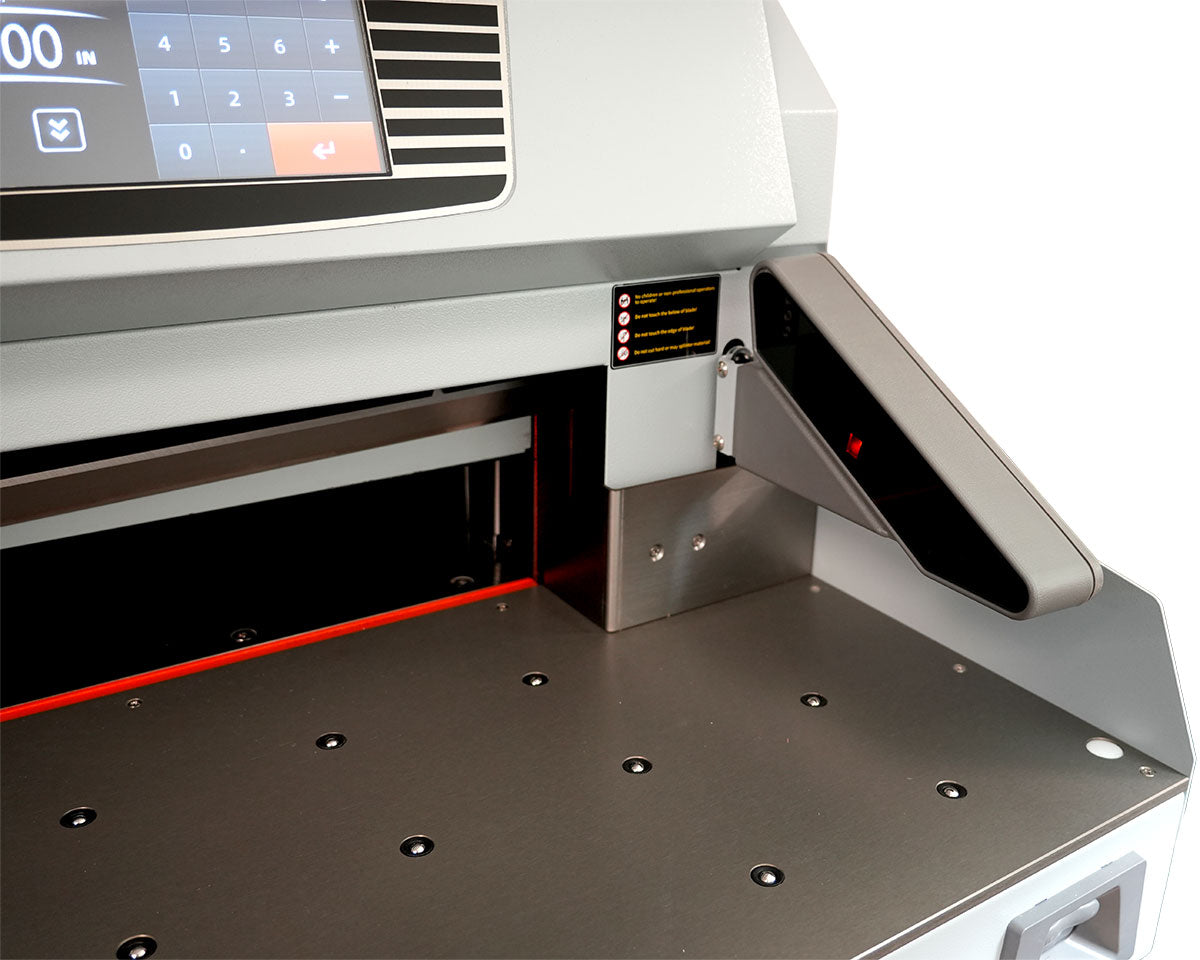

Enhanced Operator Safety: Features a crucial Light Beam Safety curtain that instantly stops the machine if the cutting area is breached, ensuring maximum operator protection.

Boway Model 5910v9 Programmable Hydraulic Cutter, 23″ Wide Specs

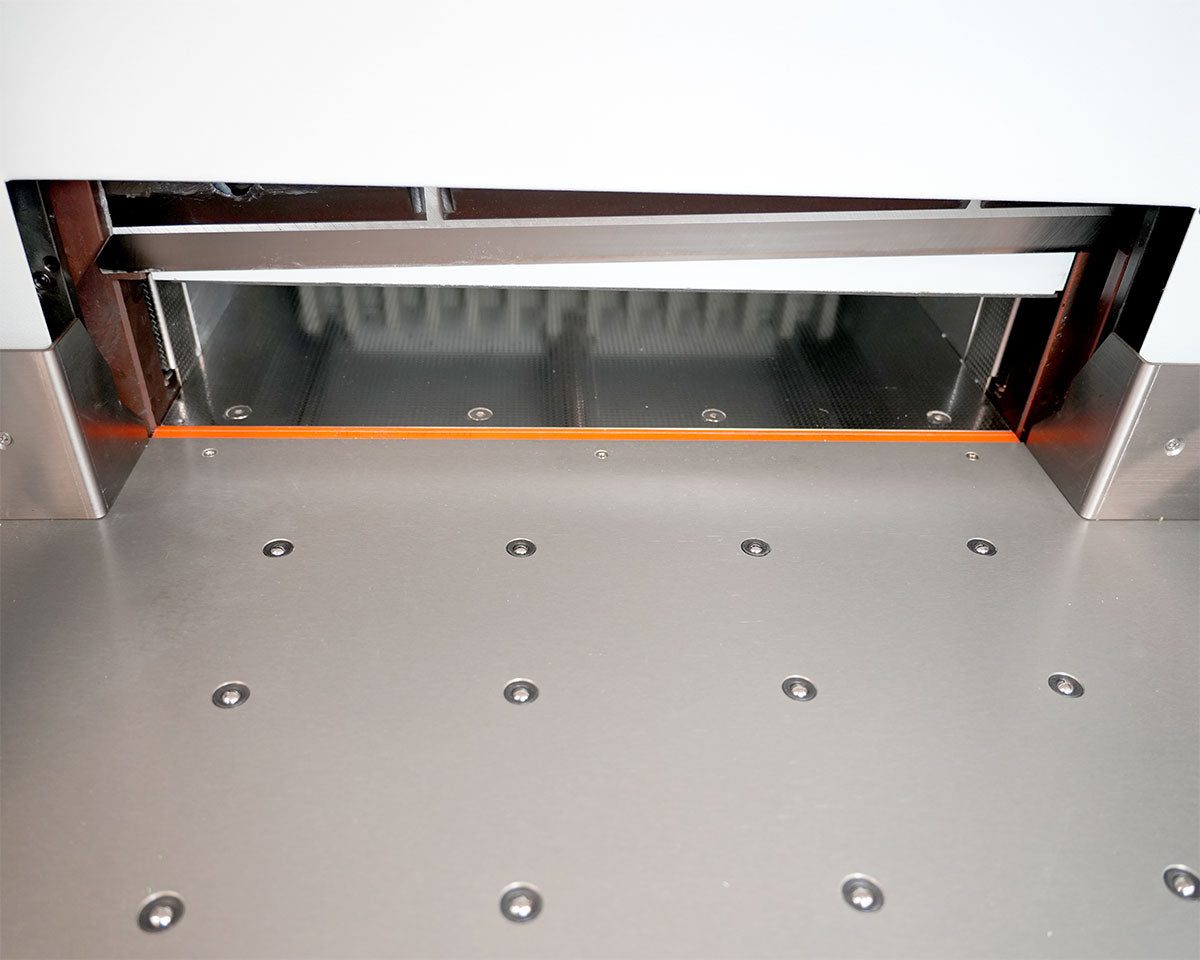

Aluminum Table: The high-quality Aluminum Table simplifies material handling. It moves and positions heavy paper stacks with minimal effort (Air optional).

Powerful Hydraulic Operation: The hydraulic clamp and blade deliver strong, steady pressure for smooth cuts through thick stacks. You can use the foot pedal to control pre-clamping manually

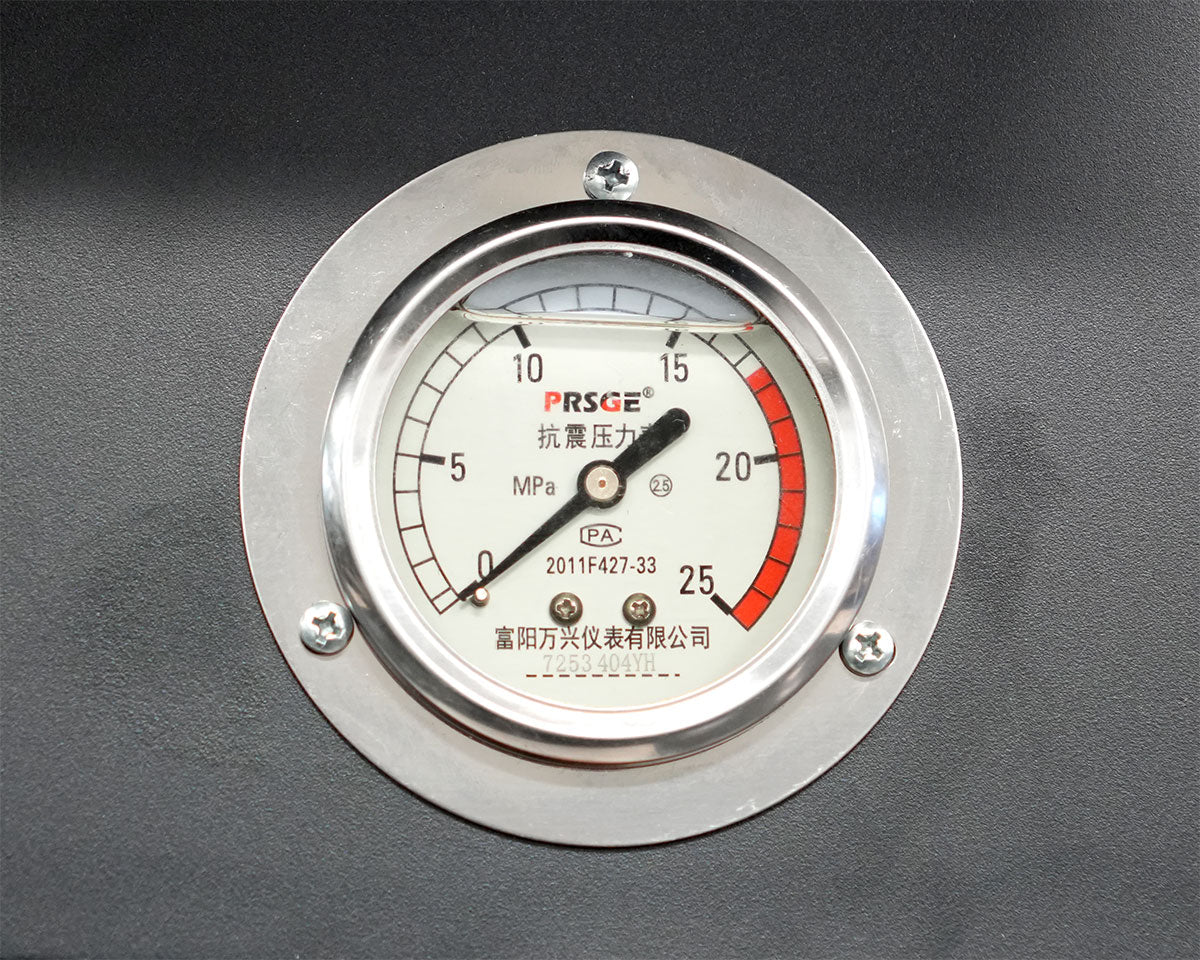

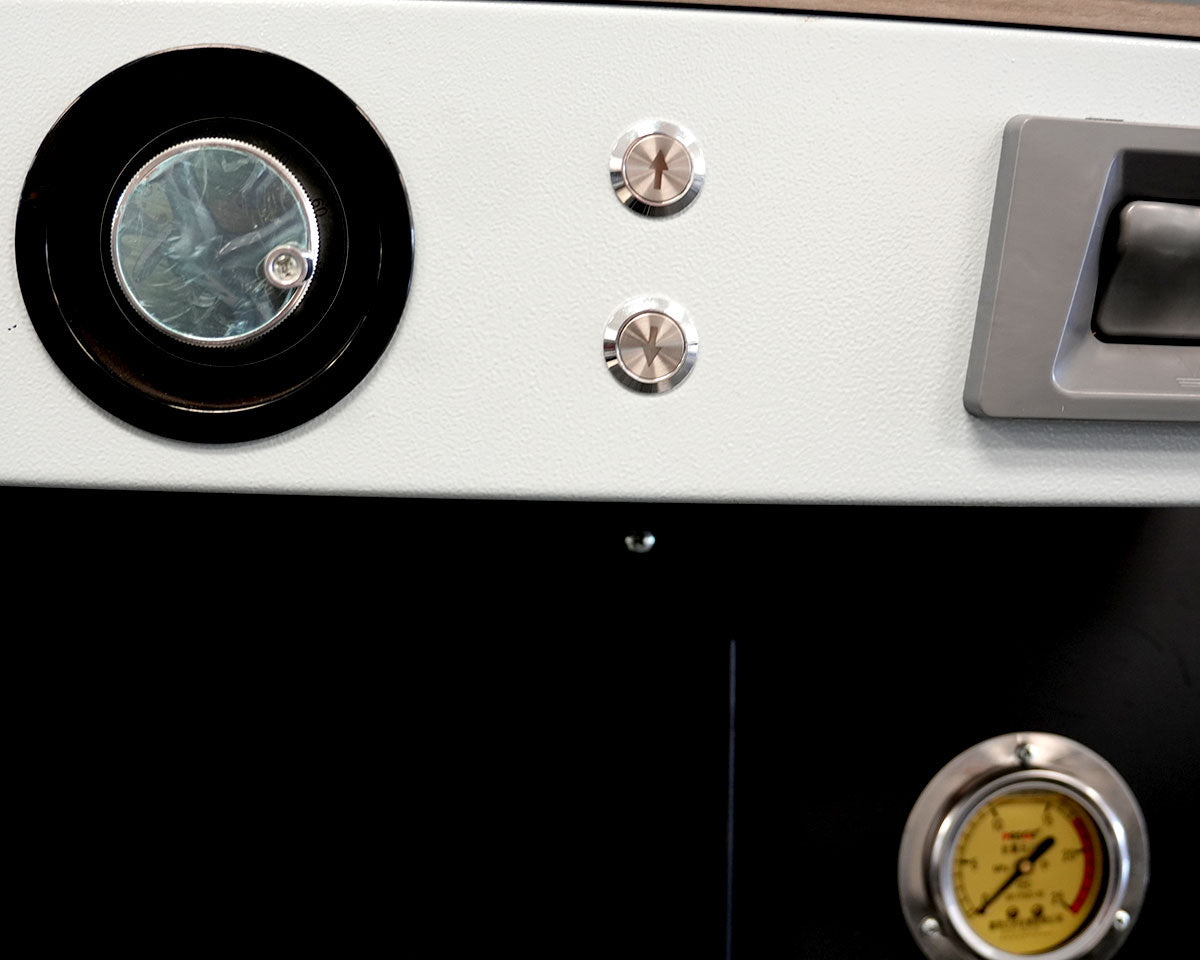

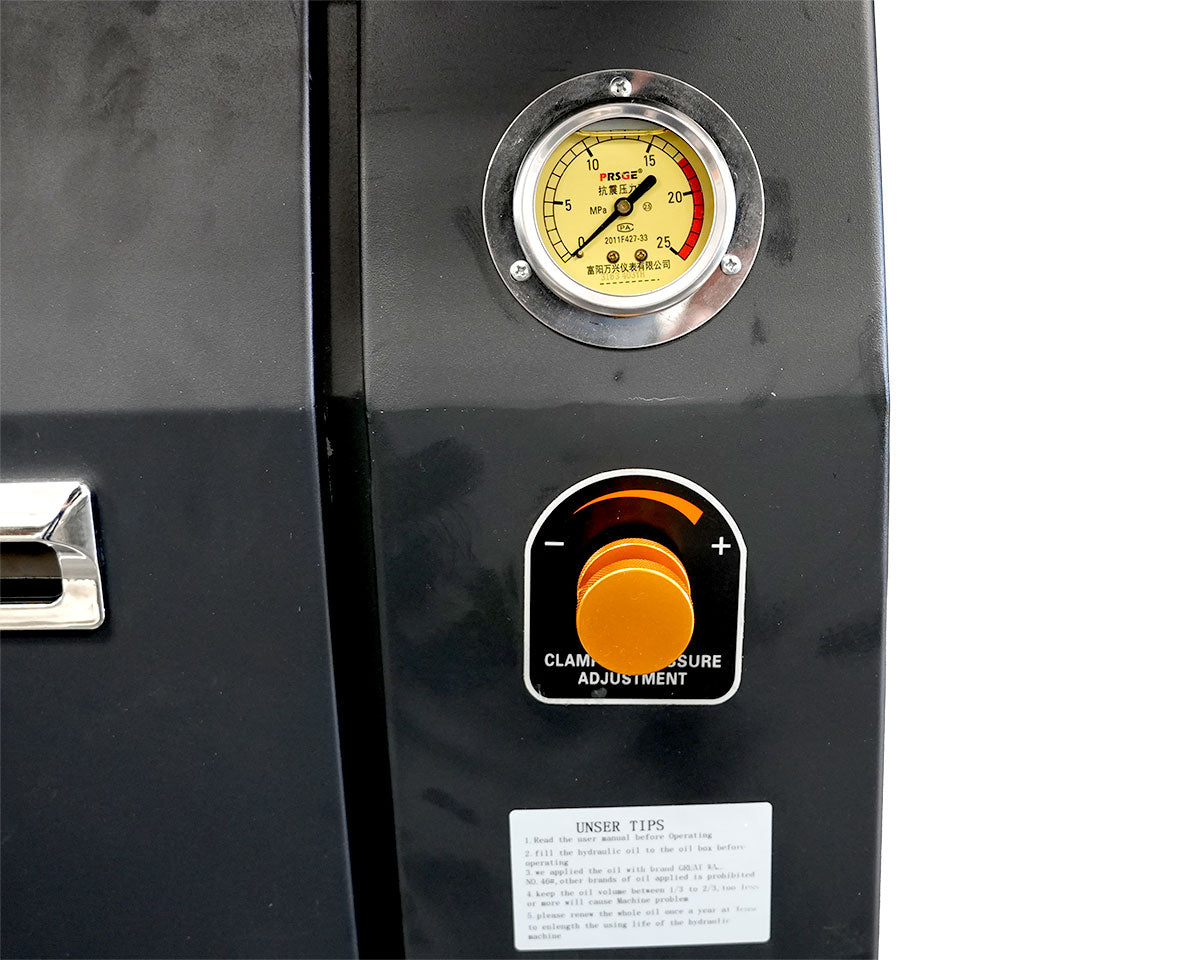

External Hydraulic Control: It includes an outer hydraulic pressure controller for easy pressure checks and adjustments. Two outside pressure indicators help you monitor cutting and clamping pressures with more flexibility.

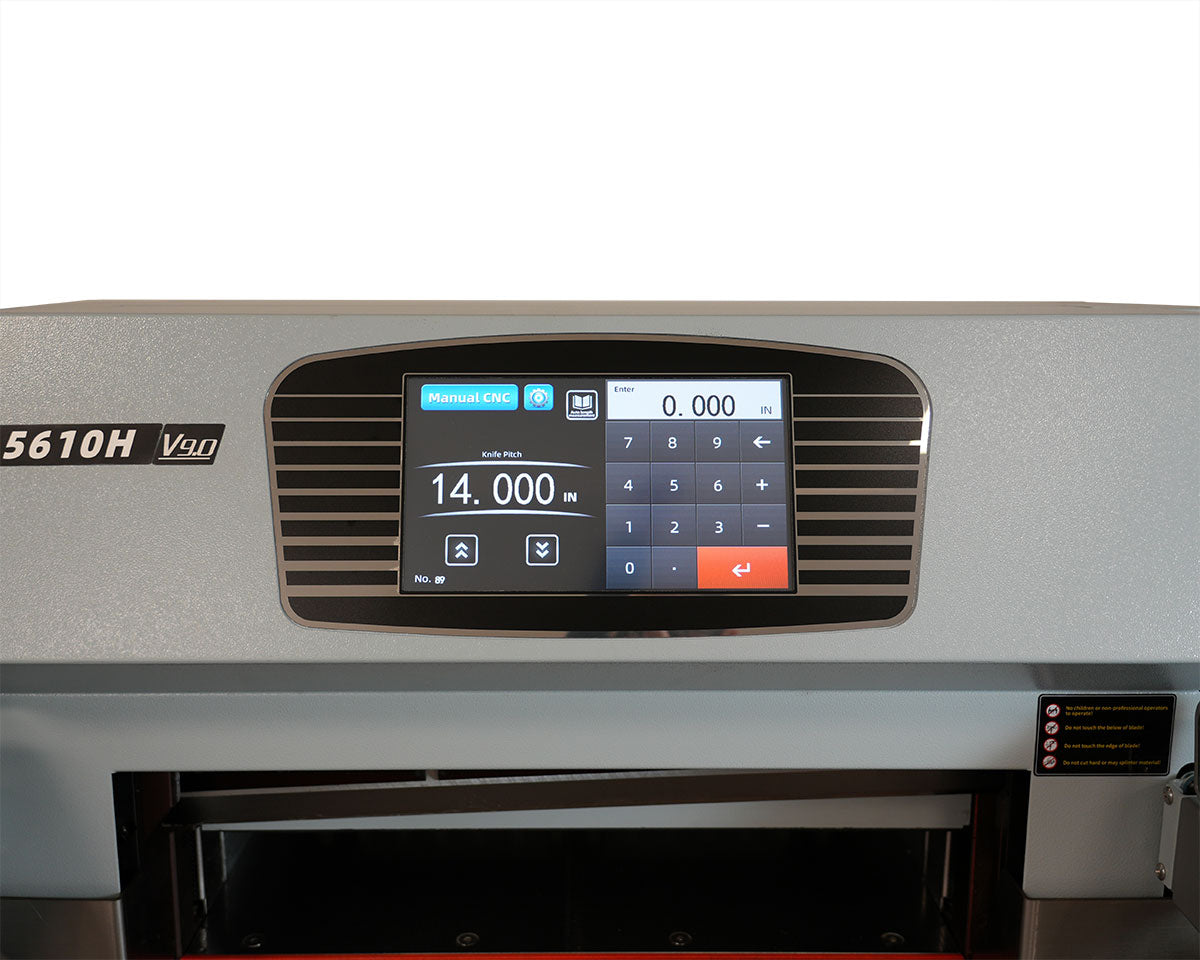

Advanced Programmable Control: The 10.2” touchscreen lets operators program and store many cut jobs with ease. It reduces setup time and keeps cuts repeatable with ±0.2 mm accuracy.

High-Performance Servo Motor: The Servo Motor moves the backgauge with precise and reliable control. It delivers high accuracy and long-lasting performance.

Versatile Cutting Capacity: Handles an impressive Max Cutting Size of 22” x 22” (560mm x 560mm). Also has a substantial Max Cutting Height of 3.9” (100mm).

Optional Side Tables: Side Tables are Optional for extending the work area and providing greater support for larger sheet sizes.

Technical Specifications

Feature	Specification	Detail
Model	5610H
Max Cutting Size	22” x 22”	560mm x 560mm
Max Cutting Height	3.9”	100mm
Min Cutting Size	0.9”	20mm
Cutting Accuracy	$\pm 0.2\text{ mm}$	Superior Precision
Clamping System	Hydraulic + Pedal	High-Pressure, Controlled Clamping
Cutting System	Hydraulic	Powerful and Consistent Cut
Display	10.2” Touchscreen	Programmable and User-Friendly
Motor Type	Servo Motor	Precise Backgauge Movement
Power	220V, 50/60Hz, 1ph	Standard Power Requirements
Dimensions (LxWxH)	49” x 35.4” x 55”	1250mm x 900mm x 1400mm
Side Tables	Optional	(Available Separately)

Please do not order online with Credit Card. Credit will be refunded less the Credit Card Fees.

Dimentions:

Width: 35.4 in
Height: 55 in
Length: 49 in
