Roland DG · TrueVIS

LG Series

UV-LED Printer/Cutters — LG-300 & LG-640

Print and cut in one pass

— UV-LED output with white, gloss and primer, then contour cutting on the same machine, at up to 172 ft²/h.

The TrueVIS LG Series brings UV-LED printing to the TrueVIS print/cut platform. Two staggered printheads with built-in ink heaters hold colour stable regardless of shop temperature, and up to nine ink channels cover CMYK plus orange, red, white, gloss and primer — so brand colours, spot gloss and textured effects all come off one device. Available in 30 in. and 64 in. widths.

$22,195USD
Request a Quote

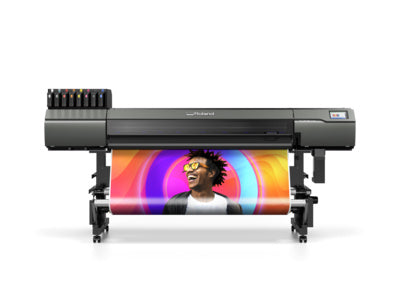

September 2026 promotional pricing. LG-300 shown. EUV-5-P-7 ink in 750 ml pouches. Media take-up included. Call 800-268-6577 or email sales@printfinish.com.

Print Speed

Up to 343 ft²/h in draft

The LG-640 runs 172 ft²/h in standard CMYK, 229 ft²/h in high-speed and 343 ft²/h in draft. An optimised waveform and new UV lamps do the work — the lamps cure more efficiently, so the speed is usable rather than nominal.

Heated Printheads

Stable colour in a cold shop

Two staggered 1.4 in. printheads carry heaters that warm the ink before it fires. That removes most of the effect of ambient temperature on colour, and cuts the idle time spent waiting for heads to come up to temperature — the difference is most obvious in winter.

Ink Configurations

Nine channels, seven ways to load them

EUV-5-P-7 ink covers cyan, magenta, yellow, black, orange, red, white, gloss and primer. Seven configurations are supported, from double CMYK for speed through to CMYKOrReWhGl for gamut and effects. Independent testing of the LG-640 measured an average gamut volume of 569,004 cubic L*a*b* units — comparable to Roland's gamut-expansion eco-solvent devices — and found the high-density white underlayer lifted gamut on black media by over 30 per cent.

Control Panel

A 7-inch touchscreen, a first for TrueVIS

The newly designed 7-inch LCD touchscreen shows media type, media size and remaining capacity at a glance, and puts setup within reach without a manual. Automated media calibration saves both time and material at the start of a run.

Media Handling

Built for unattended runs

A redesigned chassis, an adjustable take-up unit that accepts different roll sizes, and a one-touch media clasp that lets a single operator load a roll. A front heater is included, and the take-up unit ships as standard rather than as an option.

Software

VersaWorks 7 and DG Connect

VersaWorks 7 is included, with the True Rich Color 3 preset, Nearest Color Finder and the Variation job function. Roland DG Connect adds a dashboard across every TrueVIS printer on the floor, tracking maintenance and consumables, with alerts when something needs attention.

Choose your model

LG-300

The 30 in. model. Takes media from 7.17 to 30 in. (182 to 762 mm) on rolls to 66 lbs, and prints CMYK at 115 ft²/h in standard mode. Measures 79.6 × 29.5 × 55.6 in. and runs on a 5.7/2.6 A supply — the one to choose where floor space or power is tight.

$22,195 USD / $31,995 CAD
LG-640

The 64 in. model. Takes media from 13.19 to 63.98 in. (335 to 1,625 mm) on rolls to 99 lbs, and prints CMYK at 172 ft²/h in standard mode — half as fast again as the LG-300 across a bed twice the width. Measures 113.6 × 29.5 × 55.6 in.

$24,395 USD / $34,995 CAD

What the LG Series prints

UV-LED output on a print/cut platform — signage and graphics work, plus the gloss, texture and white-ink effects a UV device makes possible.

A print-and-cut workflow

Roland DG Connect Designer, VersaWorks 7, and the BY2-20 work together as one connected design-to-print workflow.

Load the roll

The one-touch media clasp lets a single operator load media, and automated calibration measures it without wasting a length of stock.

Choose the ink set

Double CMYK for throughput, or add orange, red, white, gloss and primer for gamut and special effects — seven configurations are supported.

Print and cure

Two staggered heated printheads lay ink at up to 1,200 dpi while two UV lamps cure it, so output is handleable as it comes off.

Cut and wind

Contour cutting runs on the same machine at 10 to 300 mm/s, and the included take-up unit winds finished work for unattended runs.

Specifications

Key specs at a glance, with the full technical sheet below.

Models
LG-300 (30 in.) and LG-640 (64 in.)
Printhead
New print head × 2, staggered
Max. resolution
1,200 dpi
Media size
182 to 762 mm (LG-300); 335 to 1,625 mm (LG-640)
Print speed
Up to 115 ft²/h (LG-300); up to 172 ft²/h (LG-640), CMYK standard
Ink
EUV-5-P-7, 750 ml pouch — C, M, Y, K, Or, Re, Wh, Gl, Pr
Cutting
10 to 300 mm/s, blade force 30 to 500 gf
Warranty
Two-Year Trouble-Free Warranty

Frequently asked questions

What is the difference between the LG-300 and LG-640?

Width and throughput. The LG-300 takes media to 30 in. and prints 115 ft²/h in standard CMYK; the LG-640 takes media to 64 in. and prints 172 ft²/h. Everything else — printheads, resolution, ink, cutting and software — is the same across both.

Which ink configuration should I choose?

Double CMYK if throughput leads. Add orange and red where brand colours sit outside a CMYK gamut, white for window and dark-substrate work, and gloss or primer for spot effects and adhesion. Seven configurations are supported, so the choice is worth making against your actual job mix.

How accurate is it on brand colours?

Keypoint Intelligence tested an LG-640 over five days in 2023 and measured mean spot-colour accuracy of Delta E00 2.08 in highest-quality mode, with only one of twelve brand colours crossing the Delta E00 4.0 visible-difference threshold. That earned a five-star spot-colour rating, which is uncommon for a CMYK device and means less pre-flight correction on brand-critical work.

Can it produce multi-panel wall coverings?

Yes, and it was tested for exactly that. Across thirteen two-metre panels printed from a 30 m roll, Keypoint Intelligence recorded a maximum variance of 1.53 Delta E00 over a 54-patch control wedge and dimensional drift of just 0.33 mm per metre from the start of the roll to the end — so panels hung side by side still match.

Does it cut as well as print?

Yes — contour cutting runs on the same machine at 10 to 300 mm/s with blade force from 30 to 500 gf, so printed work is finished without moving it to a separate cutter.

Does it need external fume extraction?

The specified system is the Bofa PrintPRO LEC2, available as an option. Plan for it as part of the installation rather than an afterthought.

What warranty is included?

A Two-Year Trouble-Free Warranty, with registration required for the second year. Extensions are available to five years total, and registration also brings free online training plus phone and chat support.

Request a quote

Tell us the width you need and the work you print, and we will recommend a model and ink configuration with pricing and lead time.
