Roland DG · VersaOBJECT

LO-640-F3

Pro Series Flatbed UV Printer — 64" × 96"

Objects up to 9.5 in. thick

— a 59.8 × 96.4 in. print area that takes finished goods, panels and awkward shapes, not just flat sheet stock.

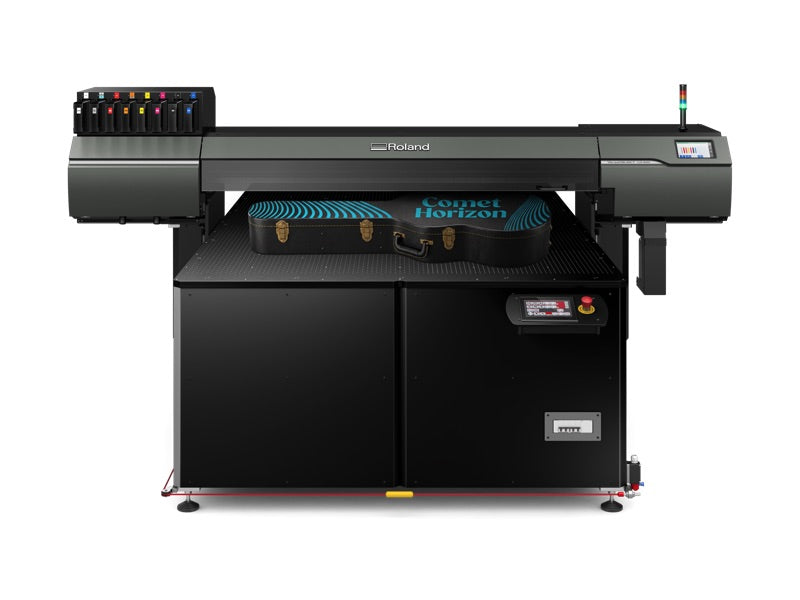

The LO-640-F3 is a large-format UV-LED flatbed for printing directly onto objects and rigid stock. The bed accepts pieces up to 9.5 in. thick and 220 lbs per square foot, and a Generic Distance mode extends jetting range so uneven surfaces still print cleanly. Up to eight ink channels, including white, gloss and primer.

$94,695USD

Request a Quote

ECO-UV EUV5P ink in 750 ml pouches. Call 800-268-6577 or email sales@printfinish.com.

Generic Distance Mode

Prints on shapes that are not flat

A dedicated print mode and waveform extend the jetting distance, so the LO-640-F3 handles non-flat surfaces and pieces where the print area sits below the highest point of the object — trays, phone cases, plates, awards, machinery and parts.

Reverse Printing

White under or over colour

The machine prints white plus CMYK or CMYK plus white by reversing print direction, front to back or back to front. No ink rearrangement is needed before installation, so both jobs run on the same setup.

Bed Handling

A vacuum table for heavy, awkward work

A powerful, quiet vacuum with a blow function holds pieces steady, taking up to 220 lbs per square foot. An origin-point laser sets the base position, blank space skip shortens runs, and an ionizer inside the gantry controls static.

Print directly onto the object

Objects up to 64 in. wide, 9.5 in. thick and 220 lbs per square foot — including pieces where the print area sits below the highest point, using Generic Distance mode.

Trays
Phone Cases
Plates & Coasters
Awards & Plaques
Machinery & Parts
Rigid Panels
Signage
Industrial Housings

A four-step production workflow

Roland DG Connect Designer, VersaWorks 7, and the BY2-20 work together as one connected design-to-print workflow.

Place the work

Set the piece on the vacuum table. The blow function helps position heavy items, and the vacuum then holds them steady.

Set the origin

Use the laser pointer to mark the base point, and the 7-inch touch panel to set height and print mode.

Print

UV-LED lamps cure as the job runs, and blank space skip passes over empty areas rather than travelling them.

Unload and check

The signal beacon reports job state from across the room, and prints are handleable straight off the bed.

Specifications

Key specs at a glance, with the full technical sheet below.

Printing method

Piezo ink-jet, UV-LED curing

Print area

1,520 × 2,450 mm (59.8 × 96.4 in.)

Object thickness

Max. 242 mm (9.5 in.)

Object weight

Max. 100 kg/m² (220 lb./sq ft)

Resolution

Max. 1,200 dpi

Ink

ECO-UV (EUV5P), 750 ml pouch — up to 8 channels

Dimensions

114.3 × 136.2 × 61.5 in.

Weight

2,029 lb. (920 kg)

Printing

Printing method

Piezo ink-jet method

Printing width

Max. 1,520 mm (59.8 in.)

Printing length

Max. 2,450 mm (96.4 in.)

Printing resolution

Max. 1,200 dpi

Ink-curing unit

Built-in UV-LED lamp

Objects

Width

Max. 1,625 mm (64 in.)

Thickness

Max. 242 mm (9.5 in.)

Weight

Max. 100 kg/m² (0.142 lb./in.²; 220 lb./sq ft)

Ink

Type

ECO-UV (EUV5P), 750 ml pouch

Colours

Eight colours (cyan, magenta, yellow, black, gloss, white, orange, red); seven colours with primer; seven colours with double white; six colours with gloss and double white plus primer; six colours with double gloss and double white; or four colours (cyan, magenta, yellow, black)

Power and environment

Power requirements

230 V, 16 A, 2P+E

Power consumption

Approx. 2.90 kW in operation at 100% vacuum; approx. 0.08 kW in sleep

Acoustic noise

90 dB (A) or less in operation; 80 dB (A) or less on standby

Connectivity

Ethernet (100BASE-TX/1000BASE-T, automatic switching)

Power saving

Automatic sleep feature

Environment

Operating 20 to 32 °C (68 to 89.6 °F), 35 to 80 %RH; not operating 5 to 40 °C (41 to 104 °F), 20 to 80 %RH, no condensation

Physical

Dimensions (W × D × H)

2,901 × 3,457 × 1,560 mm (114.3 × 136.2 × 61.5 in.)

Weight

920 kg (2,029 lb.)

Included items

Power cord, cleaning liquid, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect Hub)

Compatible inks

The LO-640-F3 runs ECO-UV5 in 750 ml pouches.

ECO-UV5 InkEUV5P-7XX · 750 ml pouch

Frequently asked questions

What can the LO-640-F3 print on?

Rigid stock and finished objects up to 1,625 mm (64 in.) wide and 242 mm (9.5 in.) thick, at up to 220 lbs per square foot. The print area itself is 1,520 × 2,450 mm (59.8 × 96.4 in.).

What is Generic Distance mode?

A print mode with a longer jetting distance, for surfaces that are not flat or where the print area sits below the highest point of the piece. Roland cites trays, phone cases, plates, awards, machinery and parts.

Can it print white under and over colour?

Yes. A reverse printing feature runs white plus CMYK or CMYK plus white by changing print direction, so both are available without rearranging ink channels.

What power and space does it need?

A 230 V, 16 A, 2P+E supply, drawing roughly 2.90 kW while running. The machine measures 114.3 × 136.2 × 61.5 in. and weighs 2,029 lbs, so plan the floor and access route before delivery.

How loud is it?

Up to 90 dB (A) while running and 80 dB (A) on standby — high enough that placement and hearing protection are worth planning for. The vacuum is the main source.
