Triumph

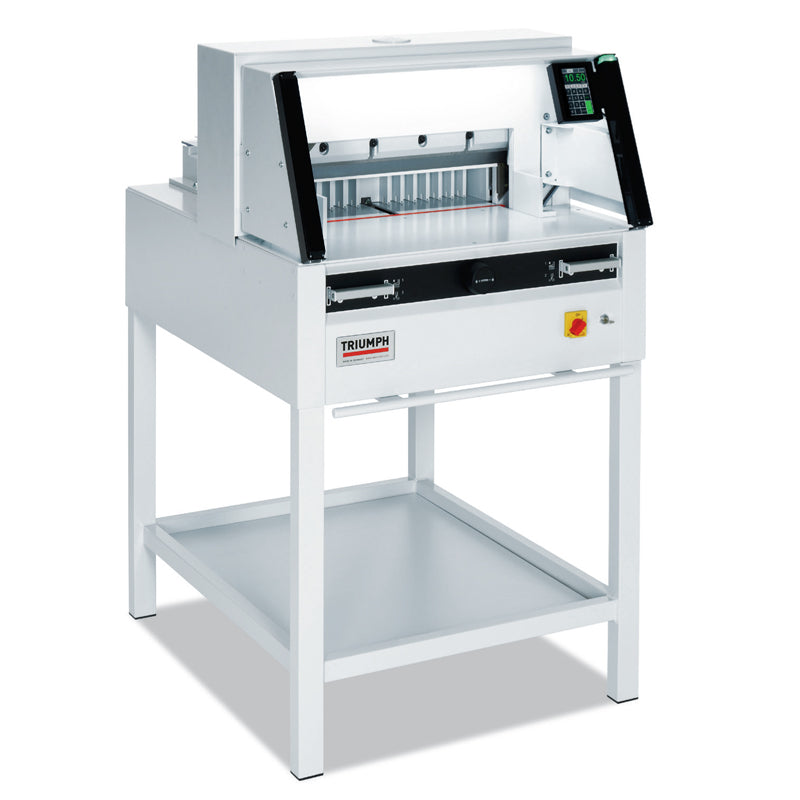

Triumph 5260 Paper Cutter 20" Programmable
$20,747
CAD
Shown in your selected currency. Shipping, installation and taxes quoted separately.
SKU MBMCU0489V
Features
*** SPECIAL ORDER PRODUCT. PROCESSING TIME WILL BE 5-7 BUSINESS DAYS BASED ON PRODUCT AVAILABILITY. ***
Triumph 5260 Paper Cutter 20" Programmable with IR Safety Front Light Beams
- Patented Easy Cut electronic blade activation bars (2 handed operation)
- IR light beam safety curtain on front table
- Transparent electronically controlled front safety guard
- Transparent safety cover on rear table
- Main switch and safety lock with key
- Patented IDEAL safety drive
- Automatic blade and clamp return from every position
- Disc brake for instant blade stop
- Blade changing device
- Outside blade depth adjustment
- Blade and cutting stick can be changed without removing covers
- Ergonomic, 37" working height
- Electric blade and clamp drive
- Electric back gauge drive with touchpad for easy programming (Up to 99 programs with 99 steps each)
- Pre-programmed for standard paper sizes, memory key for repeat cuts
- Digital measurement display (cm and inches)
- Self diagnostic system with error indication on display
- Electronic hand wheel with variable speed control for manual back gauge setting
- Adjustable, spindle guided back gauge with narrow separations and plastic gliders
- Bright LED optical cutting line
- Dual side guides on front and rear tables
- All metal construction
- German steel blade
- Optional side tables for increased work surface
Specifications
| Cutting width, inches | 20 3/8 |
|---|---|
| Cutting height, inches | 3 |
| Narrow cut, inches | 1 3/8 |
| Length behind blade, inches | 20 3/8 |
- Electrical requirements: 115 V, 60 Hz (20 amp dedicated line required)
- Motor output, horsepower: 2
- Dimensions (D x W x H), inches: 44 x 33 7/8 x 51 (56 1/2 W with side tables)
- Shipping weight, pounds: 657 (677 with side tables)
Introducing VRCUT
VRCut is a groundbreaking software solution designed to automate the cutting workflow by
promoting an efficient and error-free cutting process from start to finish.
VRCut intelligently bridges the gap between pre-press and the finishing process,
allowing operators of any experience level the ability to cut with confidence on select Triumph cutters.
