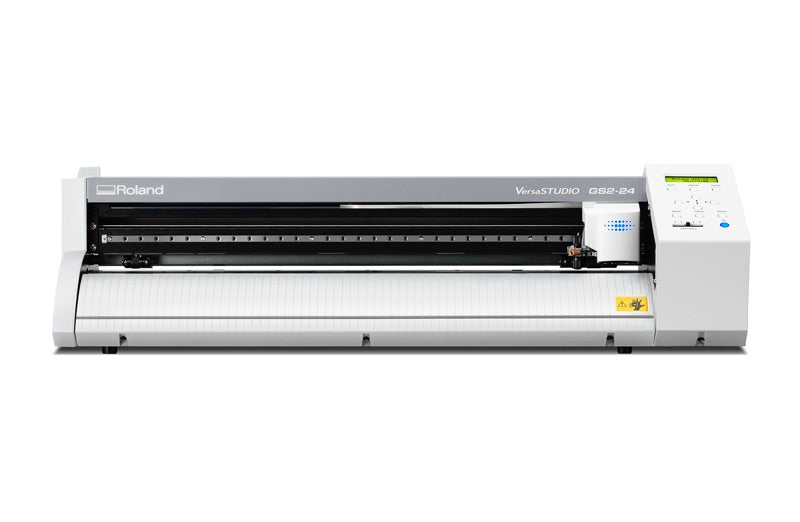

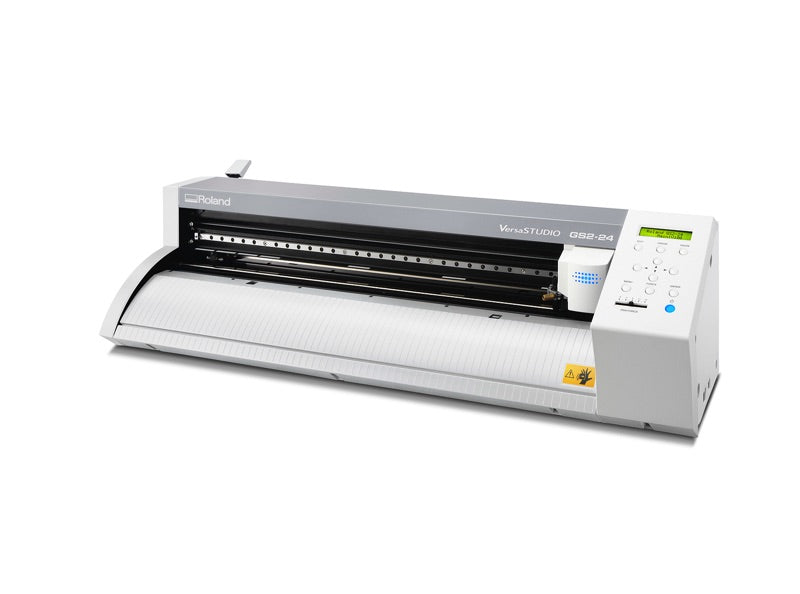

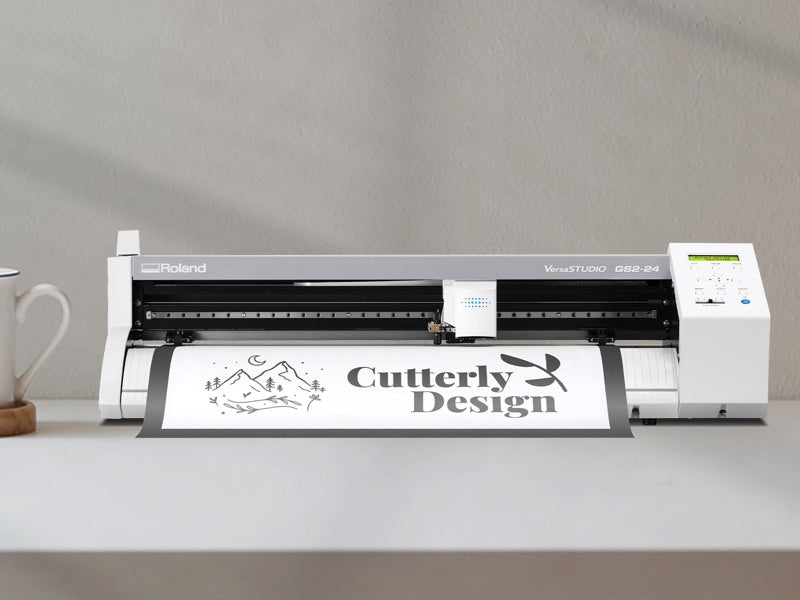

Roland DG · VersaSTUDIO

GS2-24

Desktop Vinyl Cutter — 24 in.

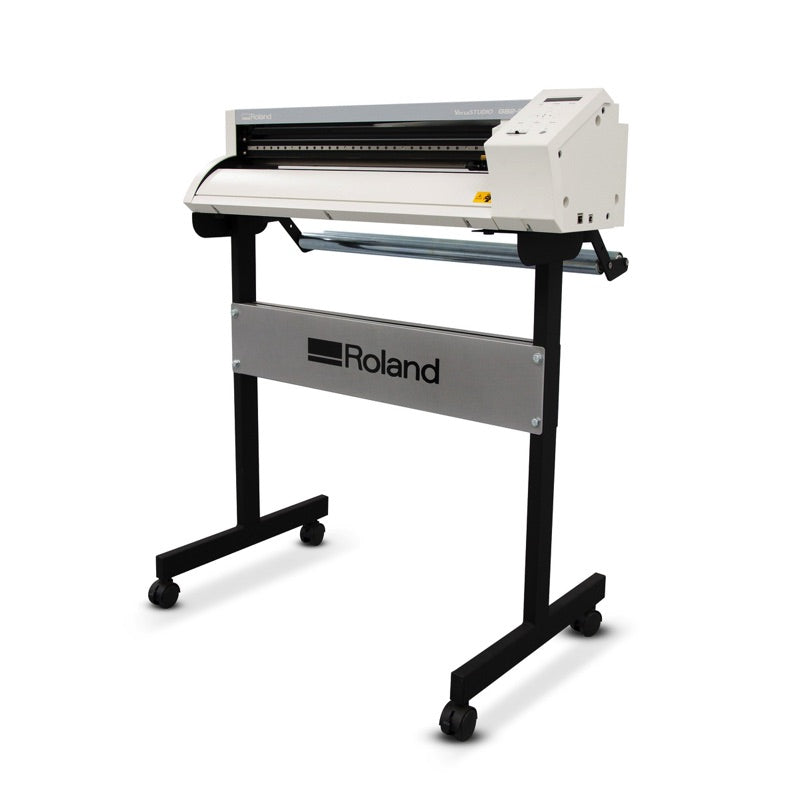

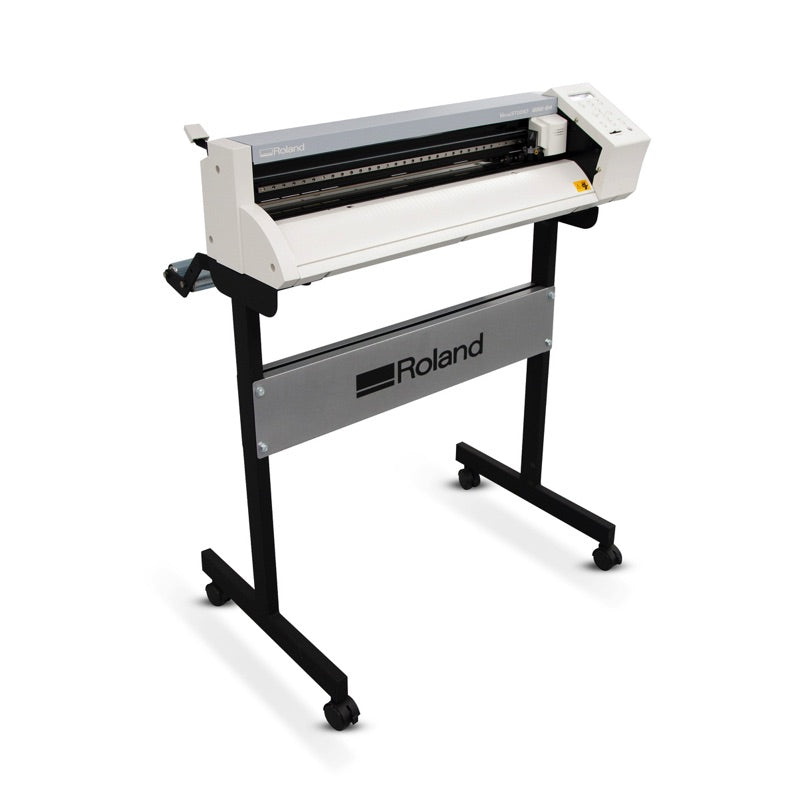

GXS-24 stand included

— along with CutStudio software and plug-ins for Illustrator and CorelDRAW, so nothing else is needed to start cutting.

The GS2-24 is a compact desktop vinyl cutter built for people starting a graphics business or bringing cutting work in-house. It runs at up to 850 mm/s with 500 gf of blade force — a substantial step up from the GS-24 it replaces — and handles hundreds of materials, from heat transfer vinyl to window film. CutStudio is included, so operators with no graphics background can produce saleable work.

$1,995USD

Request a Quote

GXS-24 stand, CutStudio and AI/CorelDRAW plug-ins included. Three-Year Trouble-Free Warranty. Call 800-268-6577 or email sales@printfinish.com.

Speed

850 mm/s — 70% faster than the GS-24

Cutting runs from 10 to 850 mm/s, against 500 mm/s on the previous generation. On production runs of decals or lettering that difference shows up as finished work per hour rather than as a specification.

Cut Force

500 gf opens up thicker material

Blade force runs 30 to 500 gf, up from 350 gf on the GS-24. The extra force covers heavier and more stubborn stock — reflective film, thicker heat transfer vinyl, sandblast resist — that a lighter cutter struggles with.

Precision

Mechanical resolution of 0.0125 mm

A digital control servo motor drives the media-moving mechanism at 0.0125 mm per step, so small text and intricate detail hold their shape rather than rounding off at the corners.

Connectivity

Ethernet as well as USB

The GS-24 offered USB alone. The GS2-24 adds Ethernet with DHCP support, so the cutter can sit on the network and take jobs from more than one workstation instead of being tethered to one machine.

Software Included

CutStudio, plus Illustrator and CorelDRAW plug-ins

Roland DG CutStudio is included along with plug-ins for Adobe Illustrator and CorelDRAW, so artwork goes from the design application to the cutter in one workflow. Roland DG Connect support is new to this generation.

Footprint

Fits a desk, draws 24 W

At 33.9 × 12.6 × 9.3 in. and 30 lbs, it sits on a bench or the included stand and draws roughly 24 W — practical for a home office, a back room or a busy shop floor.

What the GS2-24 cuts

Hundreds of materials, from heat transfer vinyl to window film — the jobs that make a desktop cutter pay for itself.

Butterfly decals cut on a Roland GS2-24 vinyl cutter

Decals & Stickers

Bakery window decal cut on a Roland GS2-24

Shop & Window Signage

Team apparel decorated with heat transfer vinyl from a GS2-24

Team & Sports Apparel

Vehicle Graphics

Rhinestone template cut on a Roland GS2-24

Rhinestone Transfers

Tournament shirt decorated with vinyl cut on a GS2-24

Event Apparel

Product Labels

Sports jersey numbering cut on a Roland GS2-24

Numbering & Lettering

From design to weeded graphic

Roland DG Connect Designer, VersaWorks 7, and the BY2-20 work together as one connected design-to-print workflow.

Design

Work in CutStudio, or stay in Illustrator or CorelDRAW and send the job through the included plug-in.

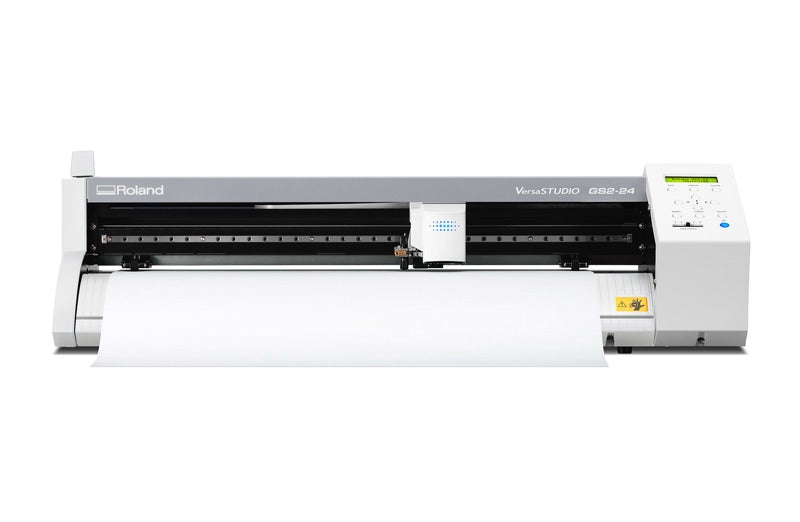

Load the material

Media from 50 to 700 mm wide, on a roll with no length restriction or as flat stock from 100 mm.

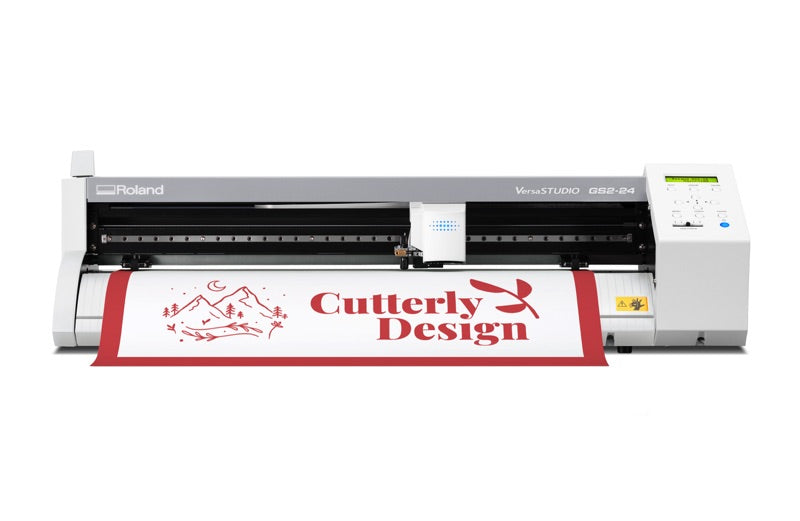

Cut

Up to 850 mm/s with blade force set between 30 and 500 gf to suit the material.

Weed and apply

Cuts to a maximum area of 584 mm wide by 25 m long, so long runs of lettering come off in one piece.

Specifications

Key specs at a glance, with the full technical sheet below.

Drive system

Digital control servo motor

Max. cutting area

584 mm × 25 m (22.9 in. × 984 in.)

Media width

50 to 700 mm (1.97 to 27.5 in.)

Cutting speed

10 to 850 mm/s (0.39 to 33.4 in./s)

Blade force

30 to 500 gf

Connectivity

Ethernet (10BASE-T/100BASE-TX) and USB 2.0

Dimensions

860 × 319 × 235 mm (33.9 × 12.6 × 9.3 in.)

Weight

13.5 kg (30 lb.)

Cutting

Drive system

Digital control servo motor

Cutting mechanism

Media-moving method

Max. cutting area (W × L)

584 mm × 25,000 mm (22.9 in. × 984 in.)

Cutting speed

10 to 850 mm/s (0.39 to 33.4 in./s)

Blade force

30 to 500 gf

Cutter blade

ZEC-U5032

Mechanical resolution

0.0125 mm/step (0.49 mil/step)

Software resolution

0.025 mm/step (0.98 mil/step)

Media

Width

50 to 700 mm (1.97 to 27.5 in.)

Length

Roll material: no restriction; flat material: from 100 mm (3.94 in.)

Interface and control

Connectivity

Ethernet (automatic switching between 10BASE-T and 100BASE-TX); USB 2.0 (Full Speed compliant)

Command system

CAMM-GLIII

Replot memory

2 MB (buffer size 8 MB)

Software

Roland DG CutStudio with plug-ins for Adobe Illustrator and CorelDRAW; Roland DG Connect supported

Physical and power

Dimensions (W × D × H)

860 × 319 × 235 mm (33.9 × 12.6 × 9.3 in.)

Weight

13.5 kg (30 lb.)

Power consumption

Approx. 24 W

Included items

Cutter, GXS-24 stand, power cord, AC adapter, blade, blade holder, roller base, USB cable, alignment tool, manuals

Warranty

Three-Year Trouble-Free Warranty (registration required for the second and third years); extensions to five years available

Frequently asked questions

How does the GS2-24 differ from the GS-24 it replaces?

It cuts at 850 mm/s against 500, applies up to 500 gf of blade force against 350, and adds Ethernet with DHCP alongside USB. Roland DG Connect support is also new. Media width, cutting area and price are unchanged.

Is a stand included?

Yes — the GXS-24 stand at no additional charge, along with CutStudio and the Illustrator and CorelDRAW plug-ins. There is nothing further to buy before you start cutting.

What materials can it cut?

Hundreds, including heat transfer vinyl for apparel, self-adhesive vinyl for decals and signage, window film and rhinestone template material. The 500 gf blade force is what makes the heavier stock practical.

Do I need graphics experience to use it?

No. CutStudio is designed for operators with little or no graphics background, and the plug-ins let anyone already working in Illustrator or CorelDRAW send jobs straight from those applications.

How long a graphic can it cut?

Up to 25 metres (984 in.) in a single job, at a maximum width of 584 mm (22.9 in.), so long runs of lettering and banner text come off in one piece.

What warranty comes with it?

A Three-Year Trouble-Free Warranty, with registration required for the second and third years, extendable to five years total. Registration also brings free online training plus phone and chat support.
